Circuit Diagram

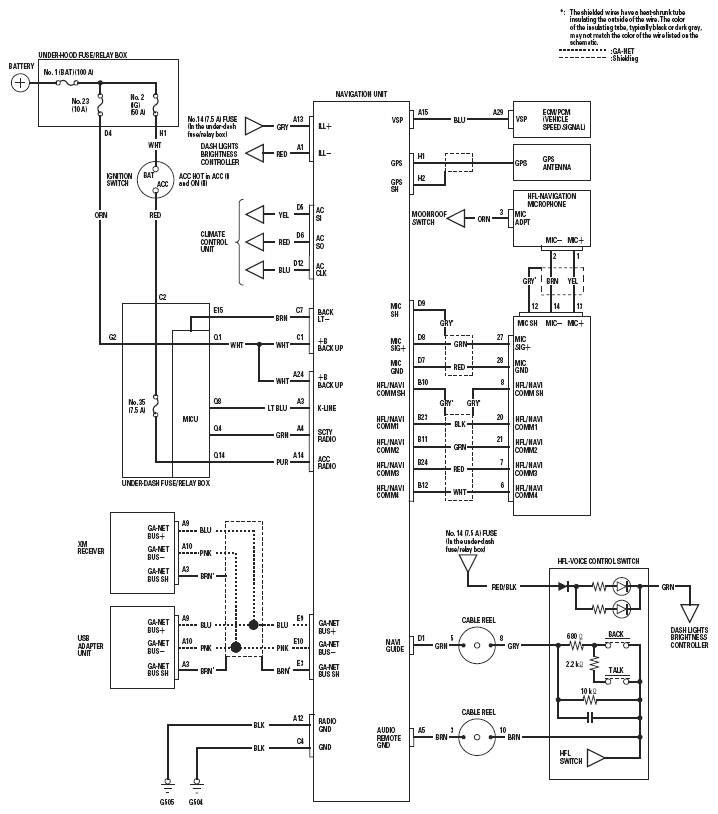

Fig 1: Navigation System - Circuit Diagram

G06467414

Courtesy of AMERICAN HONDA MOTOR CO., INC.
