Circuit Diagram

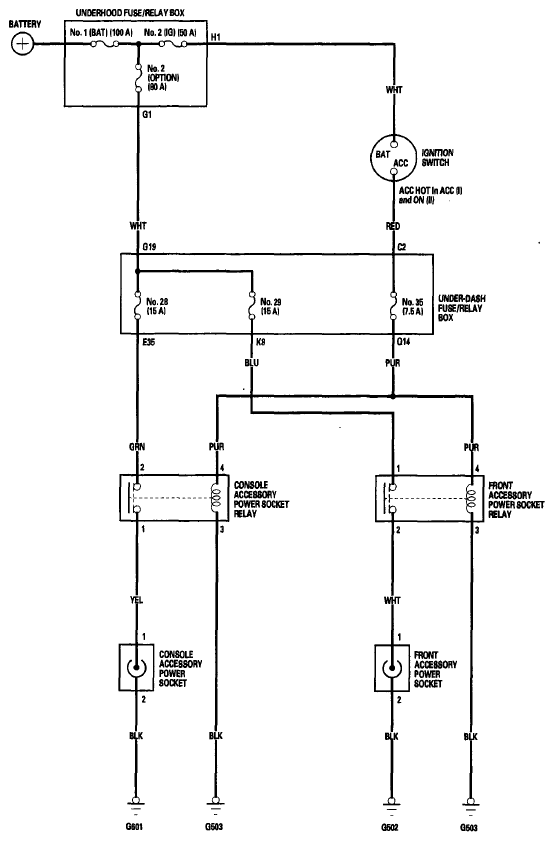

Fig 1: Accessory Power Sockets - Circuit Diagram

G06268867

Courtesy of AMERICAN HONDA MOTOR CO., INC.
