Piston, Pin, and Connecting Rod Replacement: Reassembly

Install a piston pin snap ring (A).

Fig 1: Identifying Piston Pin Snap Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Coat the piston pin bore in the piston, the bore in the connecting rod, and the piston pin with new engine oil.
Heat the piston to about 70 °C (158 °F).

Fig 2: Heating Piston
Courtesy of AMERICAN HONDA MOTOR CO., INC.

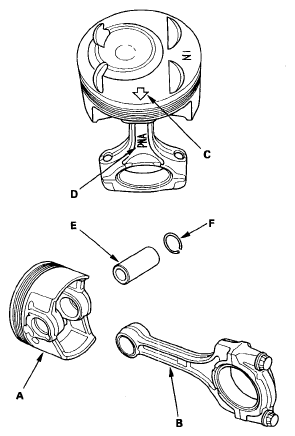

Assemble the piston (A) and connecting rod (B) with the arrow (C) and the embossed mark (D) on the same side. Install the piston pin (E).

Fig 3: Identifying Piston And Connecting Rod
Courtesy of AMERICAN HONDA MOTOR CO., INC.

This illustration shows K20Z2.
Install the remaining snap ring (F).
Turn the snap rings in the ring grooves until the end gaps are positioned at the bottom of the piston.
