Radiator Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine compartment covers (see ENGINE COMPARTMENT COVER REPLACEMENT )
  2. Dram the engine coolant (see COOLANT CHECK )
  3. Remove the air intake duct splash separator (see step 4 on ENGINE REMOVAL )
  4. Raise the vehicle on the lift
  5. Remove the splash shield (see FRONT SPLASH SHIELD REPLACEMENT )
  6. Disconnect the A/C condenser fan motor connector (A), and remove the harness clamp (B)
    Fig 1: Identifying A/C Condenser Fan Motor Connector And Harness Clamp
    G05987160Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Disconnect the radiator fan motor connector (A) and the engine coolant temperature (ECT) sensor 2 connector (B), then remove the harness clamps (C)
    Fig 2: Identifying Radiator Fan Motor Connector And Engine Coolant Temperature Sensor Connector
    G05987161Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Disconnect the lower radiator hose (A)
    Fig 3: Identifying Lower Radiator Hose
    G05987162Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Disconnect the automatic transmission fluid (ATF) cooler hoses (B) from the radiator (see ATF COOLER HOSE REPLACEMENT ), then plug the cooler hoses and the lines
  10. Lower the vehicle on the lift
  11. Disconnect the upper radiator hose (A) and remove the coolant reservoir (B)
    Fig 4: Identifying Upper Radiator Hose And Coolant Reservoir
    G05987163Courtesy of AMERICAN HONDA MOTOR CO., INC.

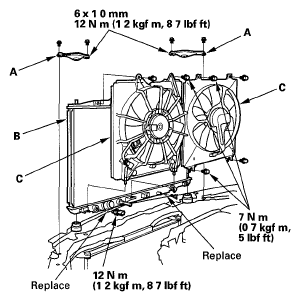

  12. Remove the upper brackets (A), then pull up the radiator (B) with fan shrouds (C)
    Fig 5: Upper Brackets, Radiator And Fan Shrouds With Torque Specifications
    G05987164Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Remove the fan shrouds and other parts from the radiator
  14. Install radiator in the reverse order of removal Make sure the upper and lower cushions are set securely
  15. A/T model: Refill the transmission with ATF (see ATF REPLACEMENT ).
  16. Fill the radiator with engine coolant, and bleed the air from the cooling system with the heater valve open (see step  8)
  17. Clean up any spilled engine coolant
  18. Install the engine compartment covers (see ENGINE COMPARTMENT COVER REPLACEMENT )
