Component Location Index

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

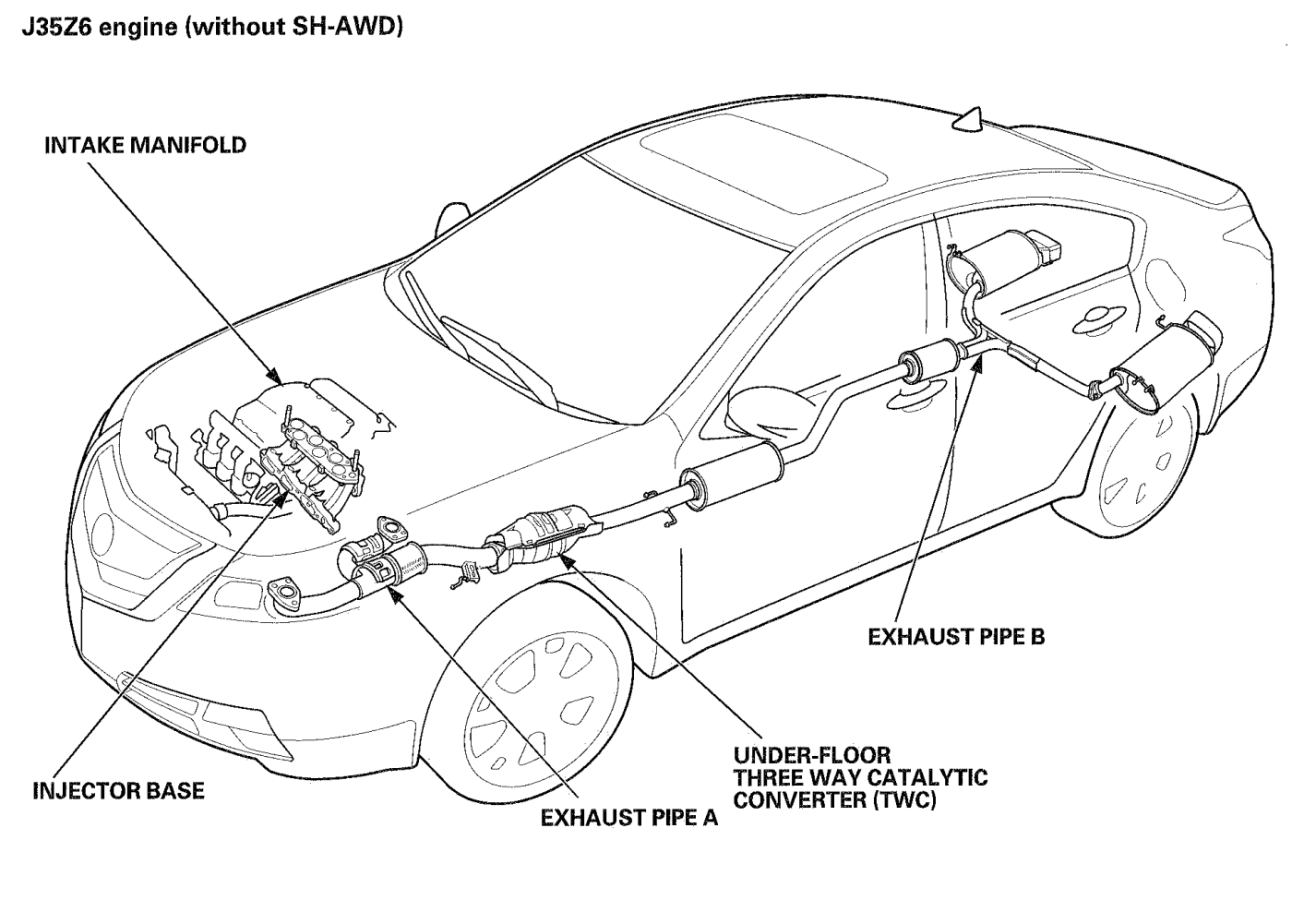

Fig 1: Identifying Intake Manifold & Exhaust System Components (J35Z6 Engine (without SH-AWD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

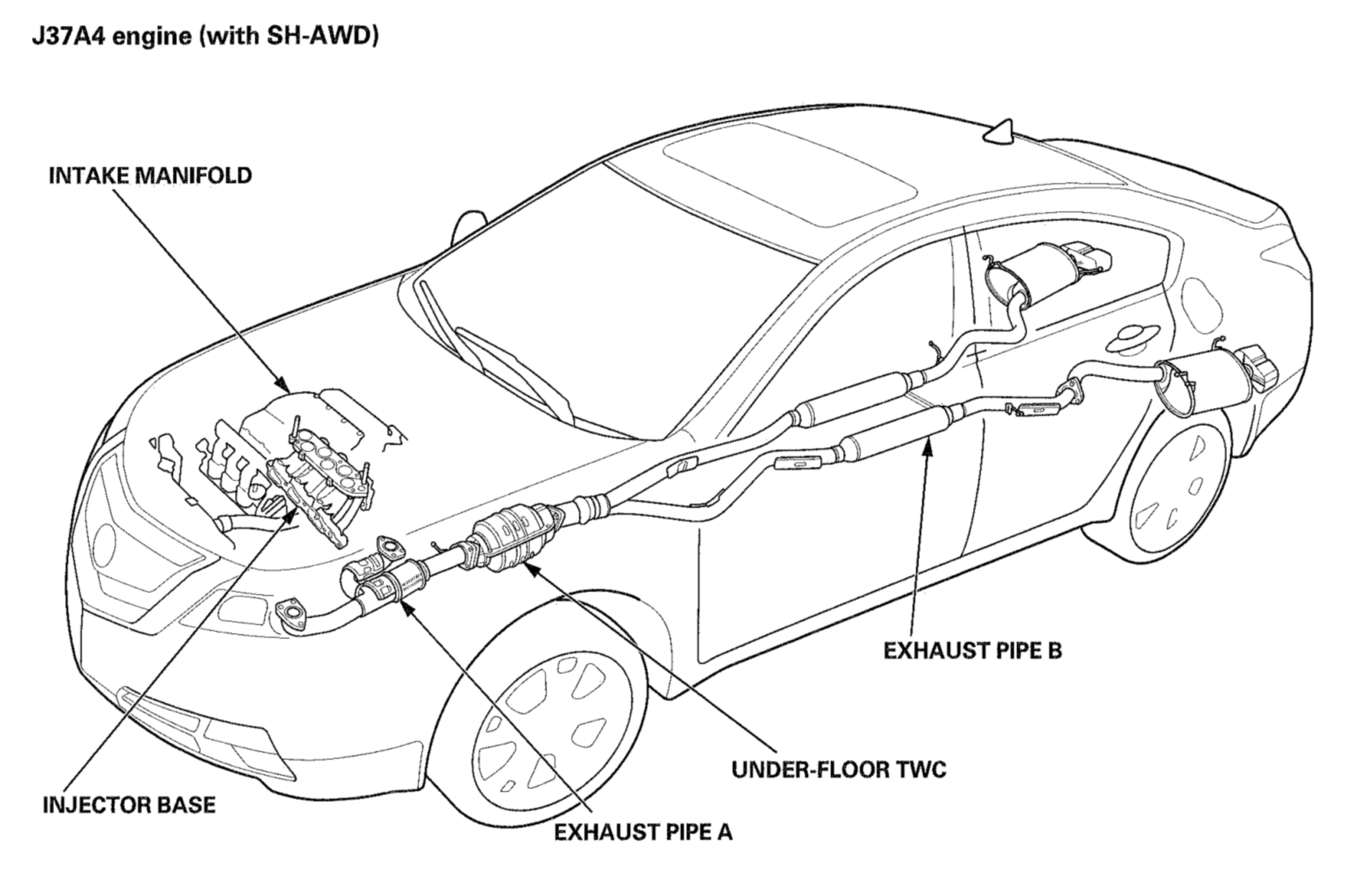

Fig 2: Identifying Intake Manifold & Exhaust System Components (J37A4 Engine (with SH-AWD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
