Injector Base Removal and Installation: Installation

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Install the front injector base (A) and the rear injector base (B) with new gaskets (C), and tighten the injector base mounting bolts/nuts (D) in a crisscross pattern in three steps, beginning with the inner nuts
NOTE: The front injector base gasket is different from the rear one Do not mix injector base gasket types

Fig 1: Front Injector Base And Rear Injector Base With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

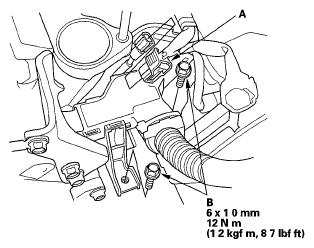

Connect the knock sensor connector (A), then install the harness holder mounting bolts (B)

Fig 2: Lnock Sensor Connector And Harness Holder Mounting Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the injectors (see INJECTOR REPLACEMENT )
Install the intake manifold (see INSTALLATION )
Inspect for fuel leaks Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode (do not operate the starter) so the fuel pump runs for about 2 seconds and pressurizes the fuel line Repeat this operation three times, then check for fuel leakage at any point in the fuel line
