Rear Subframe Torque

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Install the rear subframe by aligning the installation positioning holes and positioning holes with the subframe alignment pin
Always replace any removed subframe mounting bolts with new ones

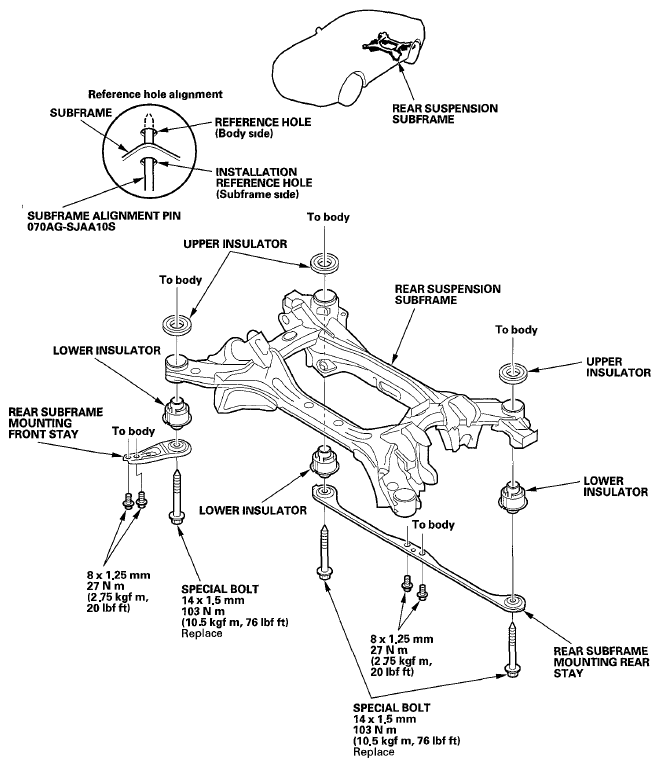

Fig 1: Rear Subframe Replacement Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
