M/T Model

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

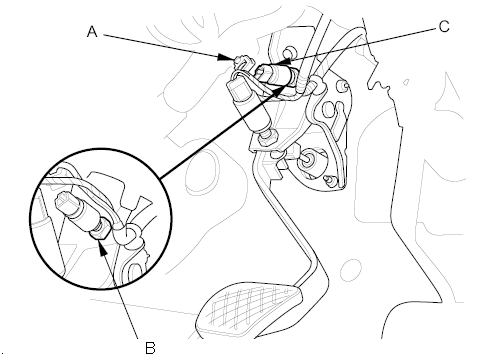

  1. Disconnect the clutch pedal position switch A connector (A).
    2. Fig 1: View Of Continuity Table
    G00492178Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Loosen the locknut (B), then remove the clutch pedal position switch A (C).
  3. Install the clutch pedal position switch A and adjust the pedal height (see Clutch Pedal, Clutch Pedal Position Switch A, and Clutch Pedal Position under CLUTCH
