M/T Model

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the clutch pedal position switch A connector (A).

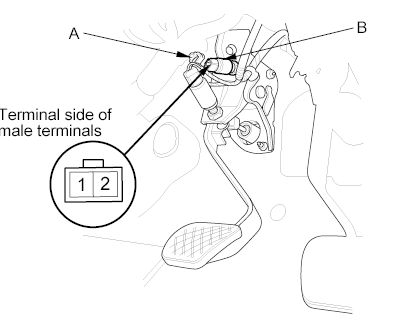

    2. Fig 1: Identifying Clutch Pedal Position Switch
    G00492176Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the clutch pedal position switch A (B).
  3. Check for continuity between the terminals according to the table
    • If the continuity is not as specified, replace the clutch pedal position switch A (see Clutch Pedal Position Switch A Replacement )
    • If OK, install the clutch pedal position switch A and adjust the pedal height (see Clutch Pedal, Clutch Pedal Position Switch A, and Clutch Pedal Position under CLUTCH

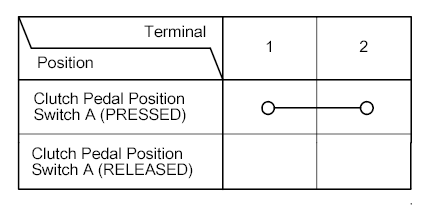

Fig 2: View Of Continuity Table
G00492177Courtesy of AMERICAN HONDA MOTOR CO., INC.
