EGR Pipe Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle on a lift
Remove the splash shield (see FRONT SPLASH SHIELD REPLACEMENT )
Remove the mounting nuts (A)

Fig 1: Mounting Nuts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lower the vehicle
Remove the mounting bolts (A)

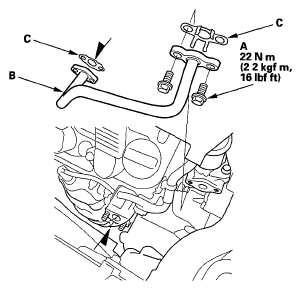

Fig 2: Mounting Bolts, EGR Pipe And Gaskets With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EGR pipe (B)
Install the parts in the reverse order of removal with new gaskets (C)
