Driver's Switch Panel Removal/Installation

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the Acura Tool and Equipment Program, call 888-424-6857

NOTE:

Take care not to scratch the trim or the panels
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage

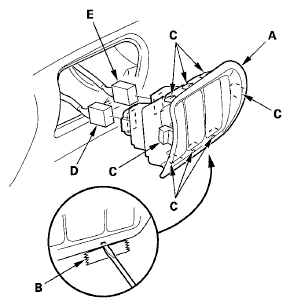

Remove the driver's switch panel (A)
1. -1 Apply protective tape (B) to the dashboard under the edge of the driver's switch panel
2. -2 Pry up on the edge of the panel with a flat-tipped screwdriver wrapped with protective tape to release the hooks (C)
3. -3 Disconnect the VSA OFF switch connector (D) and the headlight washer connector (E) (for some models)
Install the panel in the reverse order of removal, and note these items
- Make sure the each connector is plugged in properly
- Push the hooks into place securely
