System Structure: Wheels
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

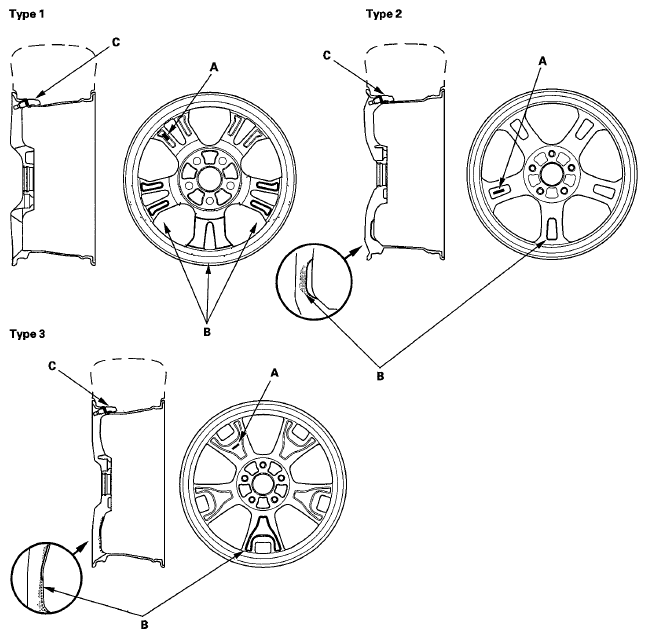

The TPMS will not work unless TPMS type wheels are installed on the vehicle There are three different types of wheels used The original equipment wheels have a "TPMS" mark (A) on them, and are counterweighted (B) by adding material on the opposite side of the tire pressure sensor (C), to counterbalance the weight of the sensor
