Rearview Camera Removal/Installation

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands
Take care not to scratch the trunk lid and related parts

Remove the trunk lid trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA )
Disconnect the rearview camera 12P connector (A) and remove the nuts (B)

Fig 1: Identifying Rearview Camera 12P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the rear license trim (A) away from the trunk lid, then remove the grommet (B) from the trunk lid, and carefully pull the connector through the hole in the trunk lid

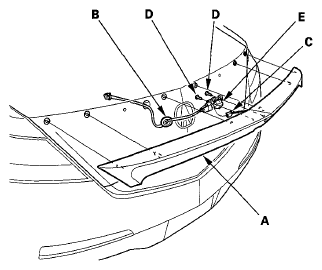

Fig 2: Identifying Rear License Trim And Rearview Camera
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connector (C), remove the screw (D) and the rearview camera (E)
Install the rearview camera in the reverse order of removal
