Speaker check mode
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Not all self-diagnostic functions appear on all models
- There may be other self-diagnostic functions that are for factory use only
- Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode
- Make sure the audio system is turned off

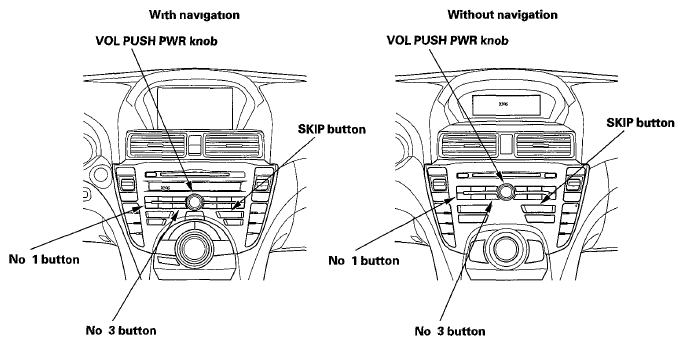

- Push and hold the preset No 1 and No 3 buttons
- While holding the buttons, push the VOL PUSH PWR knob to ON
- Release the buttons and the speaker check mode begins A tone should sound from one speaker
- Each time you press the SKIP button, the test moves to the next speaker in the order listed in the tableNOTE: Adjust the volume level to a comfortable level
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Display Specifications
(→) is pressed (1)→(2)→(3)→(4)→(5)→(6)→(7)
(←) is pressed (1)→(7)→(6)→(5)→(4)→(3)→(2)
SPEAKER REFERENCE CHARTSpeaker Displayed Segments Remarks (1) Driver's door speaker and left tweeter SPK FR-L You should hear a tone corresponding to the speaker (2) Front center speaker SPK CNT You should hear a tone corresponding to the speaker (3) Front passenger's door speaker and right tweeter SPK FR-R You should hear a tone corresponding to the speaker (4) Right rear door speaker(1) and right rear speaker SPK RR-R You should hear a tone corresponding to the speaker (5) Subwoofer SPK SUBW You should hear a tone corresponding to the speaker (6) Left rear door speaker(1) and left rear speaker SPK RR-L You should hear a tone corresponding to the speaker (7) All speakers SPK ALL - You should hear a tone corresponding to the speaker
- The subwoofer does not sound a tone
(1) With navigation NOTE: Any other diagnostic screens are for factory use only - The speaker check mode ends when you turn the audio system off or turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode
