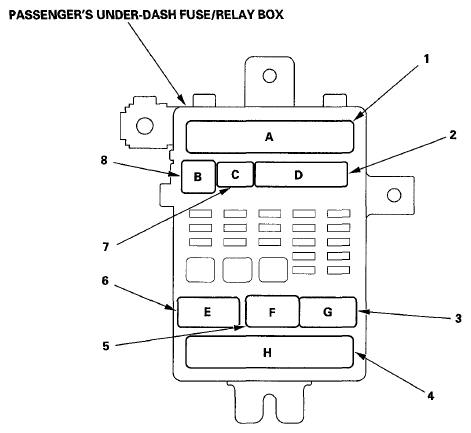

Passenger's Under-dash Fuse/Relay Box
WARNING: This page is about a different car, the 2010 Acura TL and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
TERMINAL REFERENCE CHART
| Socket | Ref | Terminal | Connects to | Notes | ||||
|---|---|---|---|---|---|---|---|---|
| A | 1 | 38 | Dashboard wire harness (View of middle to passenger's side) (see DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) ) | |||||
| B | 8 | 1 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) | |||||
| C | 7 | 12 | Not used | |||||
| D | 2 | 28 | Audio wire harness (see AUDIO WIRE HARNESS ) | |||||
| E | 6 | 18 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) | |||||
| F | 5 | 2 | Not used | |||||
| G | 3 | 16 | Right side wire harness (see RIGHT SIDE WIRE HARNESS (WITHOUT SH-AWD) ) | (1) | ||||
| H | 4 | 38 | Right side wire harness (see RIGHT SIDE WIRE HARNESS (WITH SH-AWD) ) | (2) | ||||
|
||||||||
