Self-diagnostic Function

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure should be used only if HDS is unavailable

To run the self-diagnostic function, do the following

Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode
Press and hold the BACK button (A) or the HFL BACK button (B) for more than 5 seconds

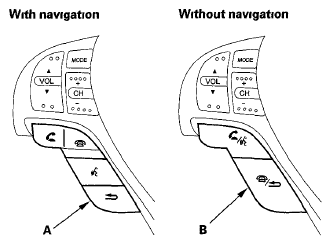

Fig 1: Identifying BACK And HFL BACK Button (With And Without Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
When the HandsFreeLink system enters the self-diagnostic function, the following will occur
- If the system has not completed testing for DTCs, the HandsFreeLink system says "The hands free system test is in progress"
- If there is no DTC, the HandsFreeLink system says "The hands free system is OK"
- If there is any DTC, the HandsFreeLink system says "The hands free system needs to be serviced"

NOTE:

The self-diagnostic function can only be initiated while the HFL is in its idle state
The self-diagnostic function is considered start once the 5 seconds press and hold is detected, and ends when the units returns to idle state
