Speaker Replacement: Tweeter

WARNING: This page is about a different car, the 2008 Acura CSX, 2007 Acura CSX, and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.

Carefully pry the tweeter grille (A) out of the dashboard. Be careful not to damage the tweeter grille and the dashboard.

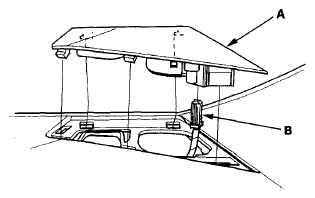

Fig 1: Identifying Tweeter Grille 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 2P connector (B) from the tweeter.
Remove the tweeter speaker from the speaker grille.

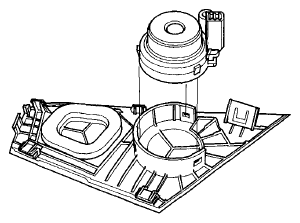

Fig 2: Identifying Tweeter Speaker
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the speaker in the reverse order of removal.
