A/T Gear Position Indicator Panel Light Harness/Park Pin Switch Replacement

NOTE: The A/T gear position indicator light and the park pin switch are not available separately. Replace the A/T gear position indicator light and the park pin switch as a set.

Remove the shift lever assembly (see SHIFT LEVER REMOVAL ).
Loosen the A/T gear position indicator panel (see SHIFT LEVER DISASSEMBLY/REASSEMBLY ).
Remove the park pin switch (A) while pressing the park pin switch lock (B).

Fig 1: Pressing Park Pin Switch Lock
Courtesy of AMERICAN HONDA MOTOR CO., INC.

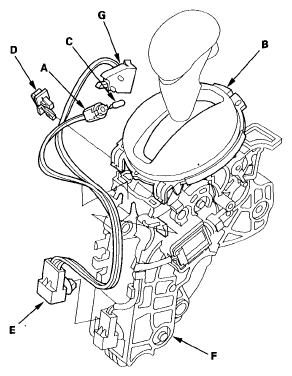

Remove the A/T gear position indicator panel light and socket (A) from the indicator panel (B), and remove the light bulb (C) from the socket.

Fig 2: Identifying A/T Gear Position Indicator Panel Light And Socket With Indicator Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the harness clamp (D), and remove the park pin switch/A/T gear position indicator panel light connector (E) from the shift lever assembly/ bracket base (F).
Install the new park pin switch (G) on the shift lever.
Install the A/T gear position indicator panel light bulb in the new socket, and install it in the indicator panel.
Clamp the harnesses together with the harness clamp, then install the harness clamp on the shift lever bracket base.
Route the harnesses along the harness guides, and install the new connector in the bracket base.
Install the A/T gear position indicator panel (see SHIFT LEVER DISASSEMBLY/REASSEMBLY ).
Install the shift lever assembly (see SHIFT LEVER INSTALLATION ).
Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
