Transmission Range Switch Test

Remove the air intake duct (see THROTTLE BODY REMOVAL/INSTALLATION ) and air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
Disconnect the transmission range switch harness connector (A).

Fig 1: Identifying Transmission Range Switch Harness Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between terminals at the harness connector. There should be continuity between the terminals in the following table for each switch position.
Transmission Range Switch Harness Connector

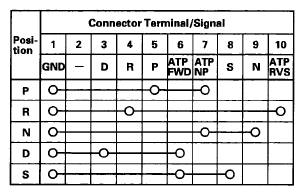

Fig 2: Transmission Range Switch Harness Connector Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Transmission range switch test has finished if the test results are OK. If there is no continuity between any terminals, go to step 5.
Raise the vehicle on a lift, or apply the parking brake, block the rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
Remove the transmission range switch cover.

Fig 3: Identifying Transmission Range Switch Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the transmission range switch connector.

Fig 4: Identifying Transmission Range Switch Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between terminals at the switch connector. There should be continuity between the terminals in the following table for each switch position.
Transmission Range Switch Connector

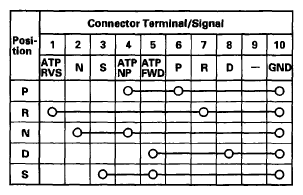

Fig 5: Transmission Range Switch Connector Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the transmission range switch continuity check is OK, replace the faulty transmission range switch harness.
If there is no continuity between any terminals, remove the transmission range switch, and check the end of the selector control shaft (A).
Selector Control Shaft:

Width (B): 6.1-6.2 mm (0.240-0.244 in.)

End Gap (C): 1.8-2.0 mm (0.07-0.08 in.)

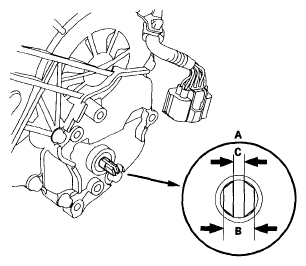

Fig 6: Identifying Selector Control Shaft, Width And End Gap
Courtesy of AMERICAN HONDA MOTOR CO., INC.
The measurement of the selector control shaft end is within the standard, replace the transmission range switch. If the measurement is out of the standard, repair the selector control shaft end, and recheck the transmission range switch continuity.
