Ignition Key Light Test

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column upper and lower covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
Disconnect the 7P connector.

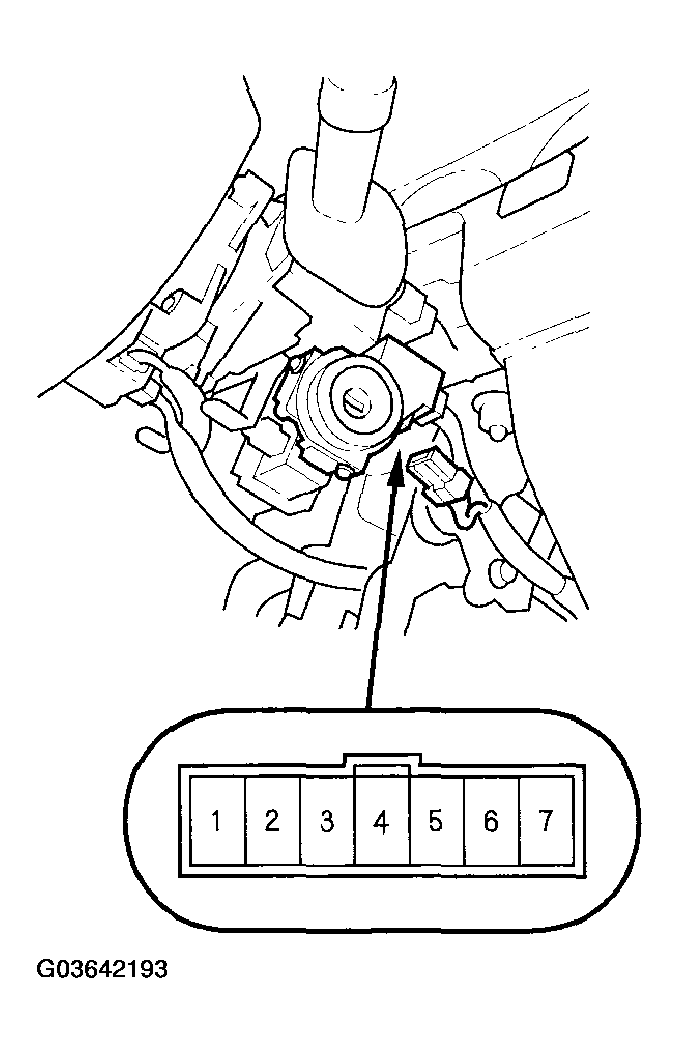

Fig 1: Disconnecting 7P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
The LED should come on when power is connected to the No. 7 terminal and ground is connected to No. 6 terminal.
If the LED does not come on, replace the ignition key switch.
