Subframe: Service and Repair

Subframe Replacement

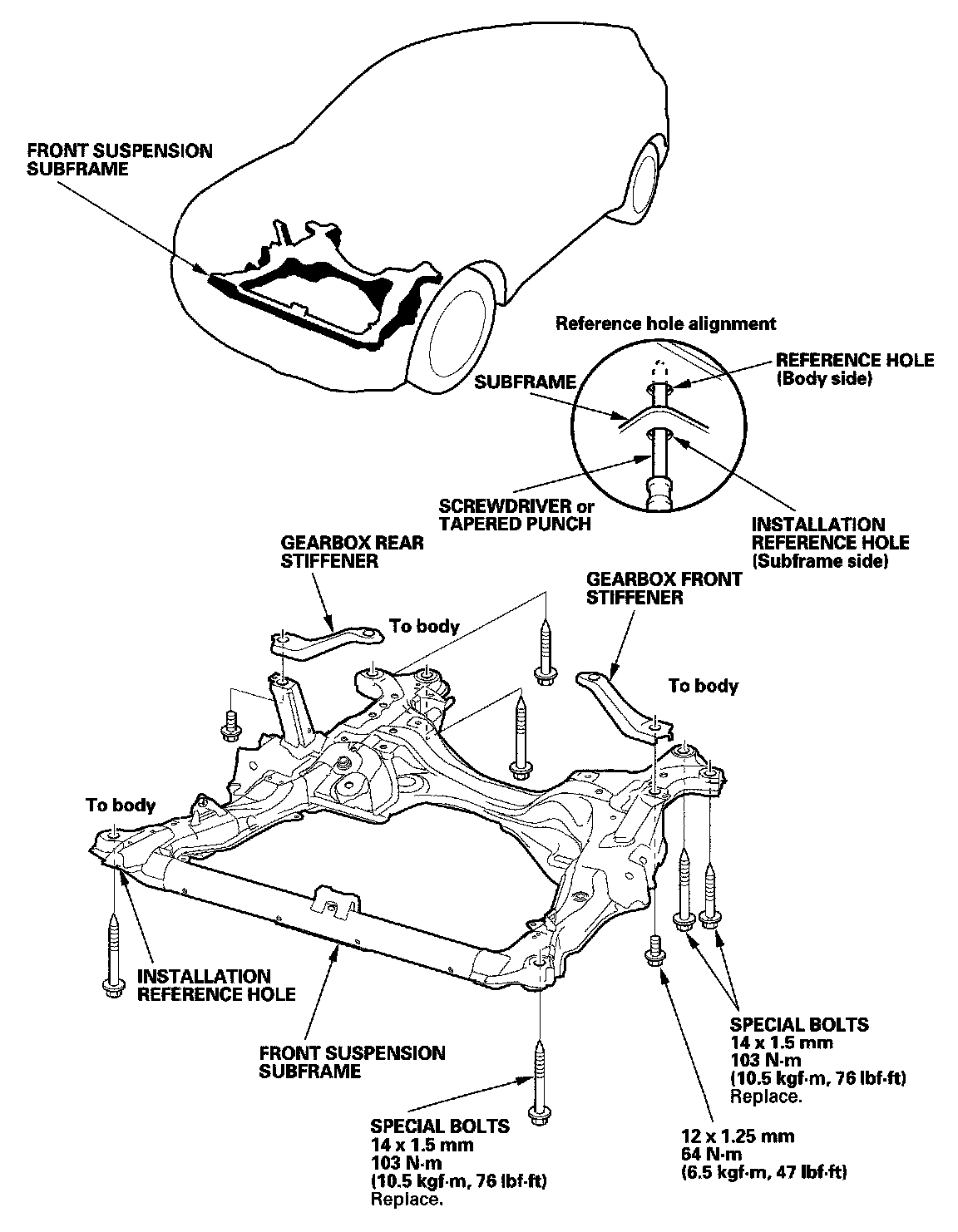

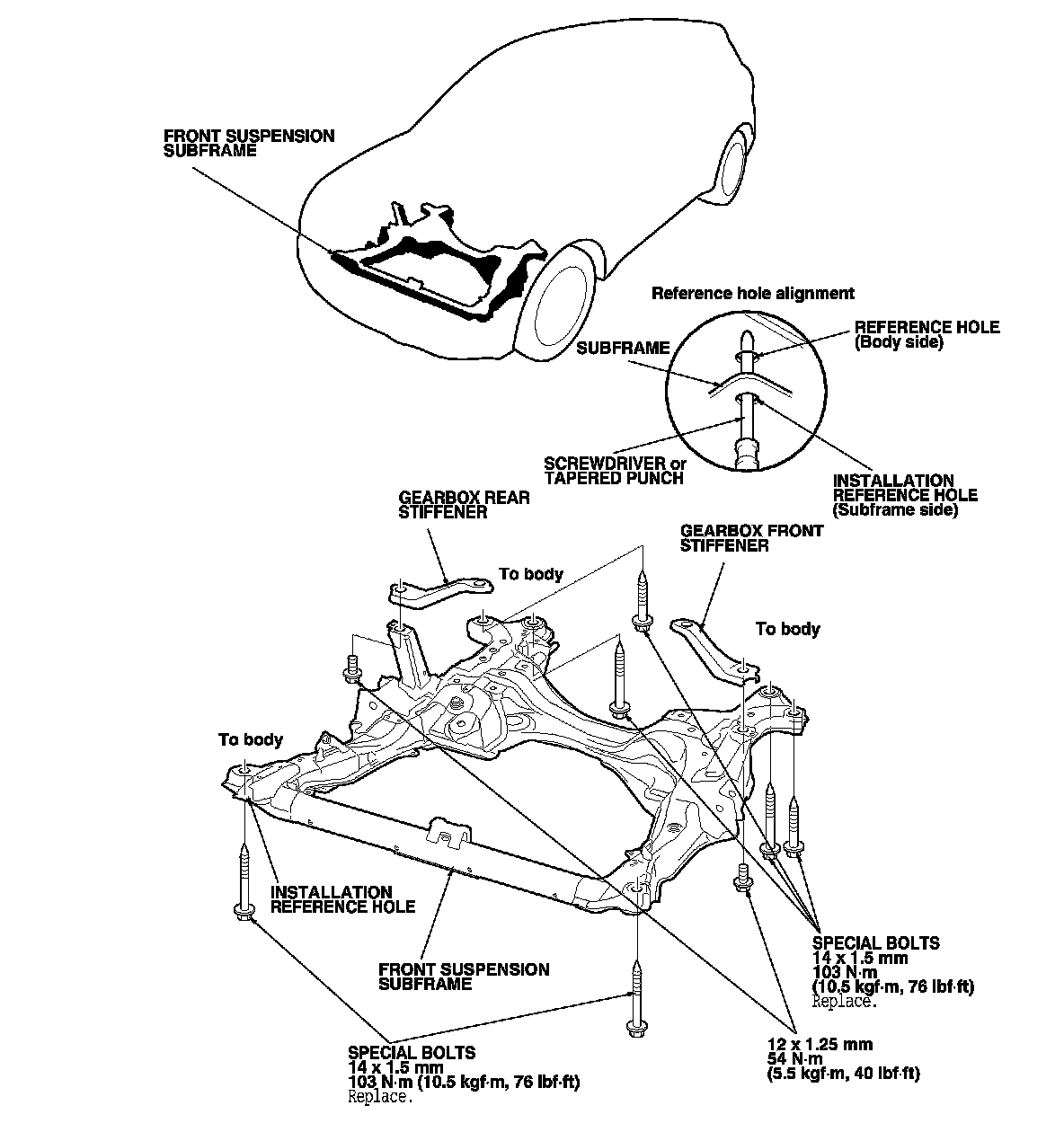

Front Subframe Torque

- After loosening the subframe mounting bolts, be sure to replace them with new ones.

- When installing, align both installation reference holes in the subframe with both reference holes in the body using a screwdriver or tapered punch as a guide.

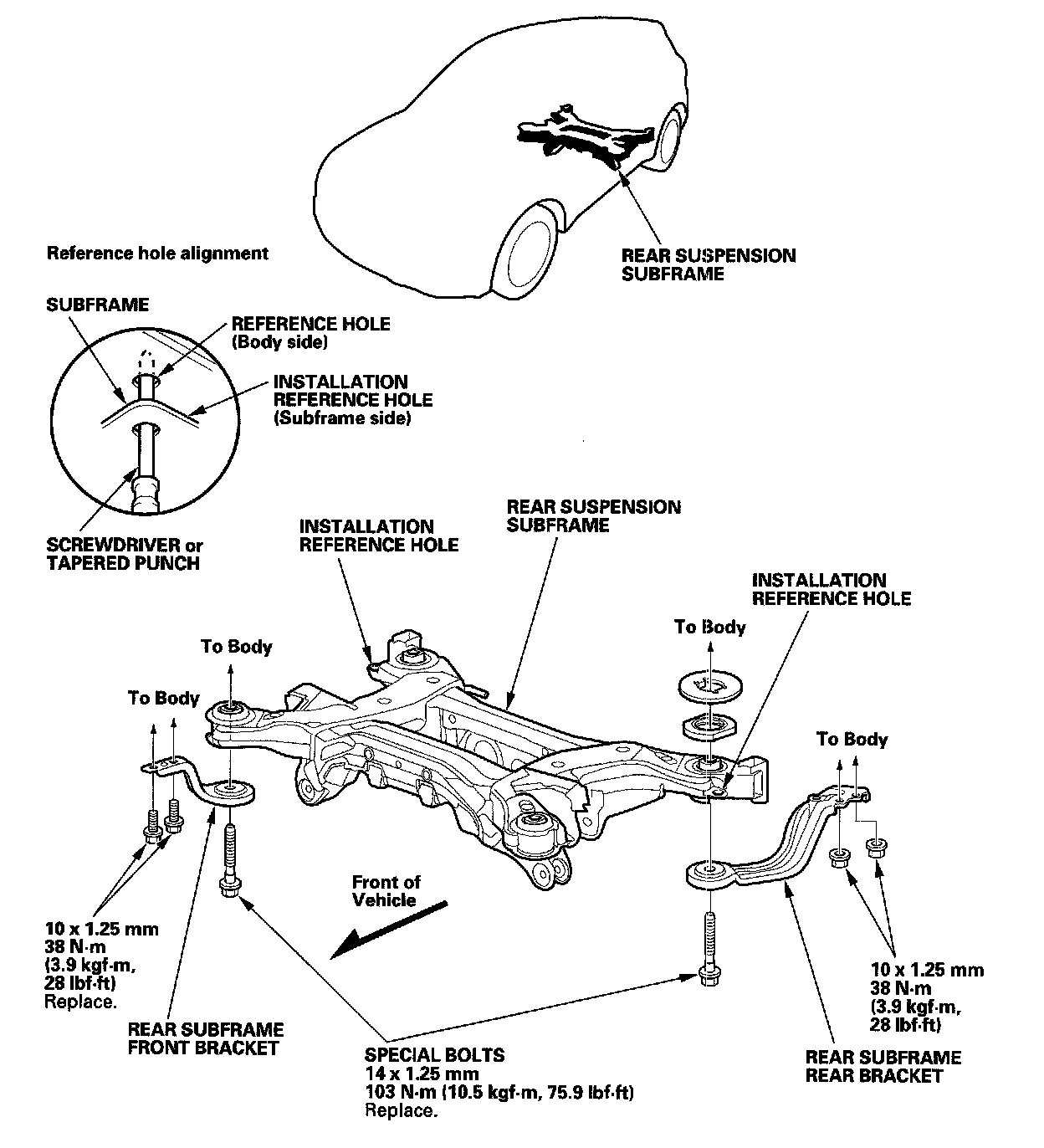

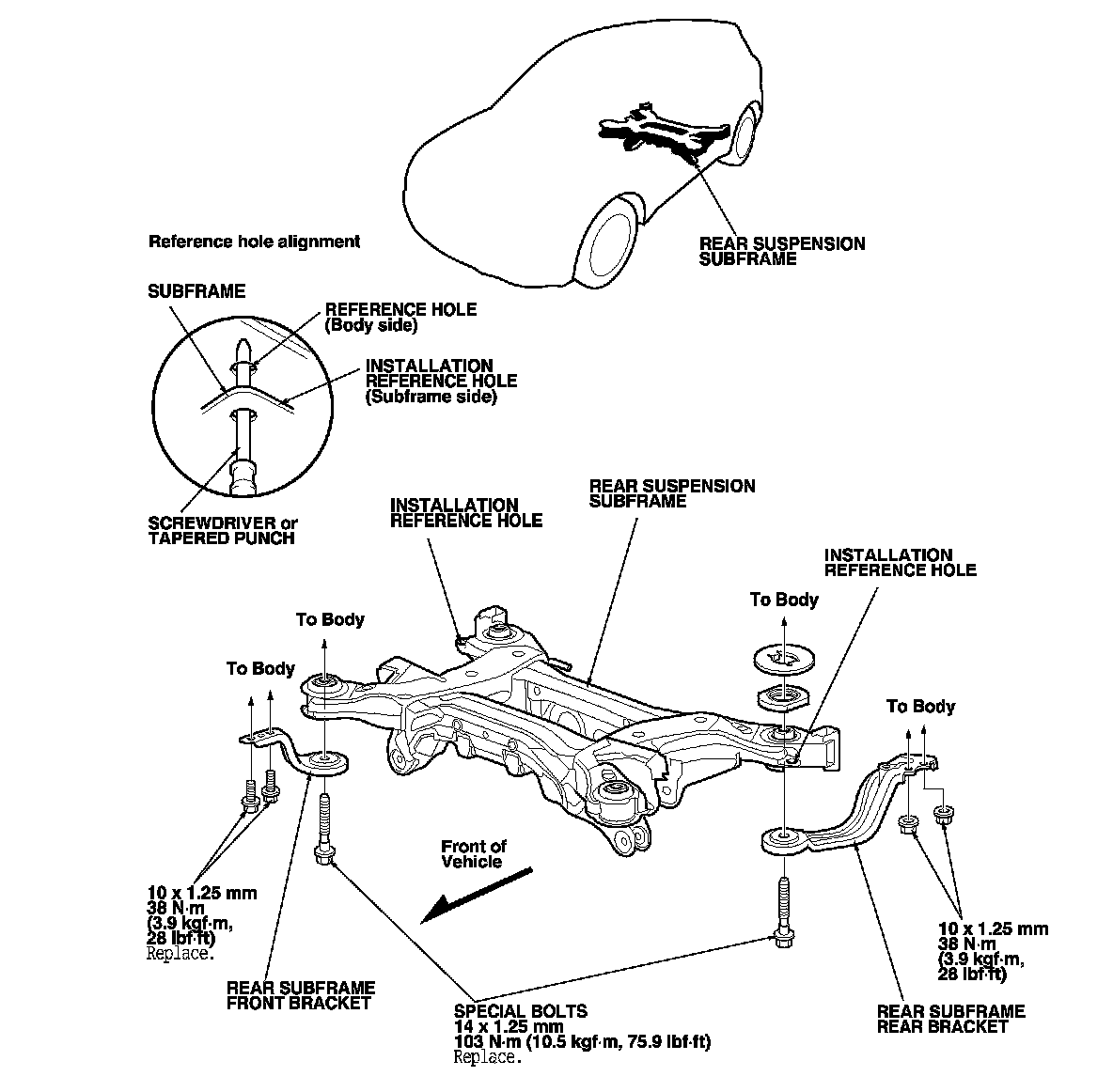

Rear Subframe Torque

NOTE:

- After removing the subframe mounting bolts, be sure to replace them with new ones.

- When installing, align both installation reference holes in the subframe with the reference holes in the body using a screwdriver or tapered punch as a guide.
