Audio-HVAC Subdisplay Unit Removal/Installation (With Navigation)

Audio-HVAC Subdisplay Unit Removal/Installation

With navigation

NOTE:

- Put on gloves to protect your hands.

- Take care not to scratch the dashboard.

1. Remove the center upper dashboard panel. Center Upper Dashboard Panel Removal/Installation

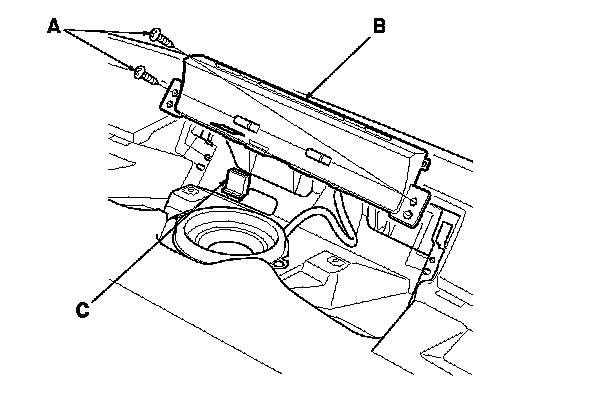

2. Remove the screws (A), then pull out the audio-HVAC subdisplay unit (B).

3. Disconnect the connector (C) and remove the audio-HVAC subdisplay unit.

4. Install the audio-HVAC subdisplay unit in the reverse order of removal.
