Connecting Rod Specifications

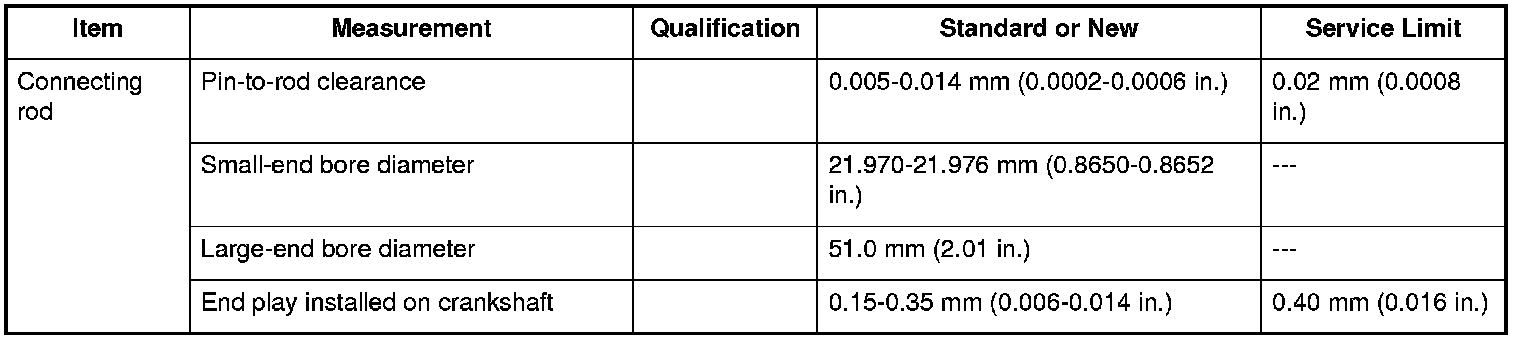

Connecting rod Specifications

Connecting rod

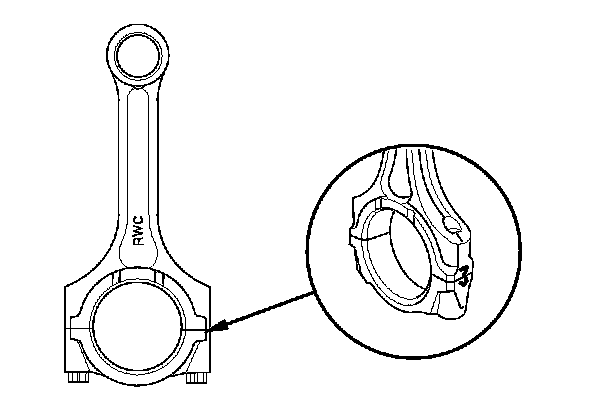

Connecting Rod Big End Bore Code Locations

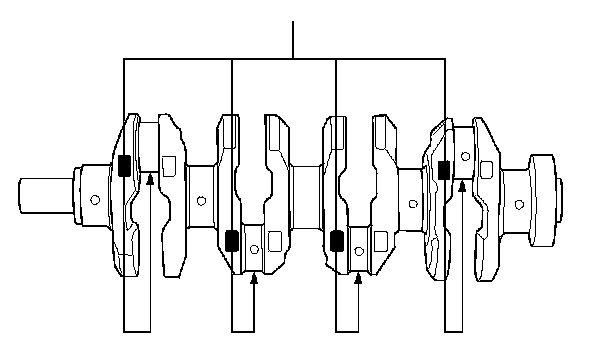

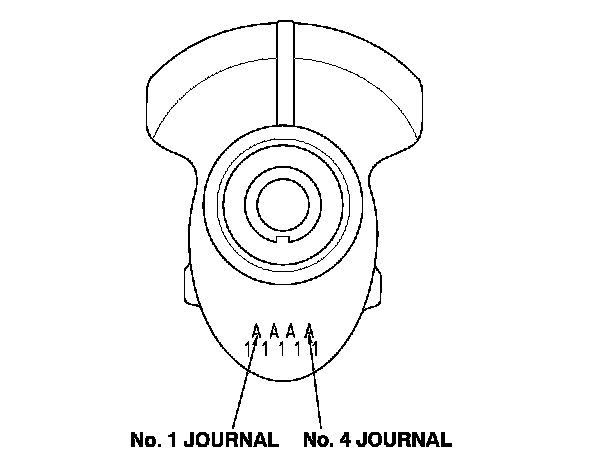

Connecting Rod Journal Code Location
