Overhaul Specifications

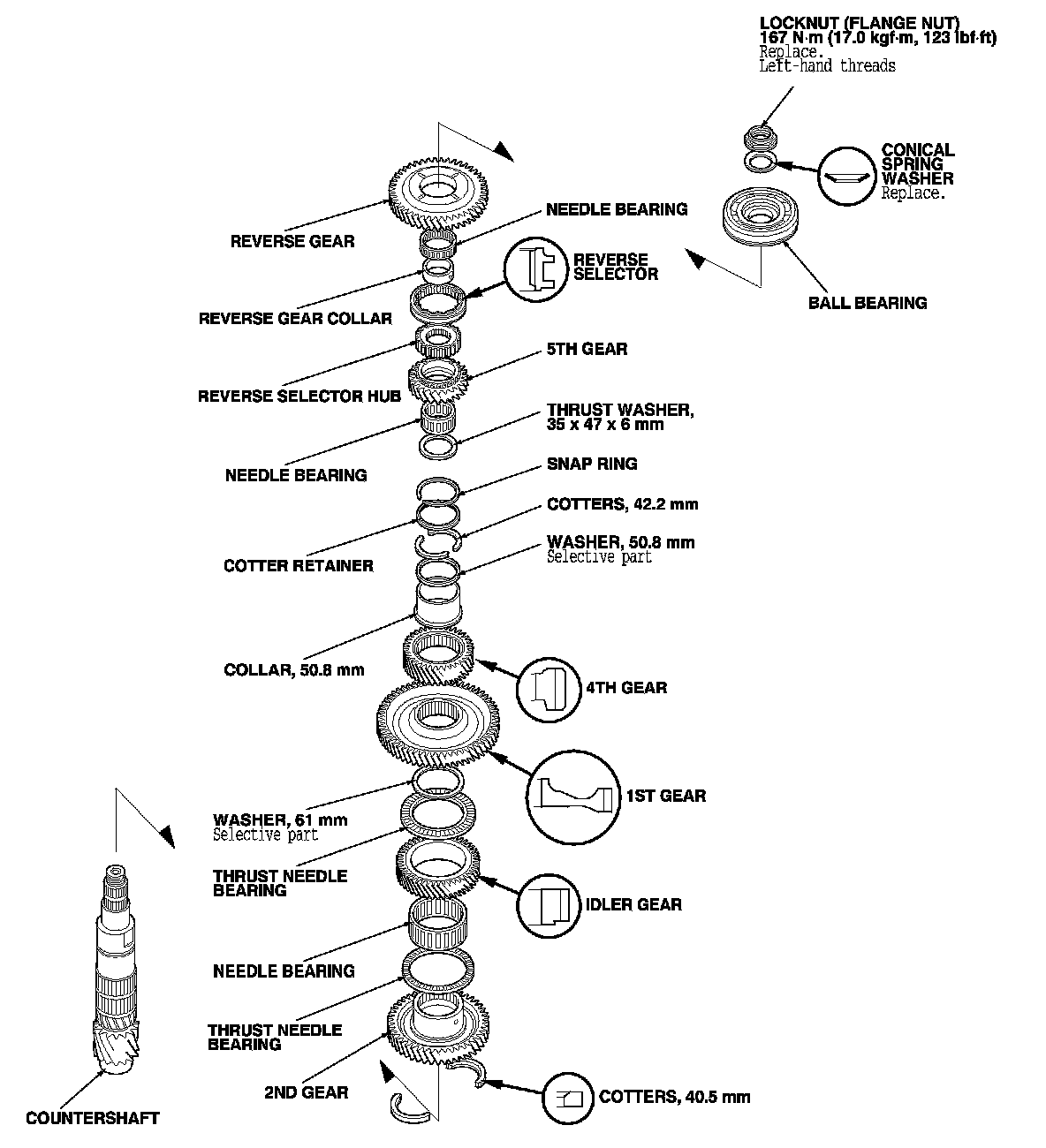

Countershaft Exploded View

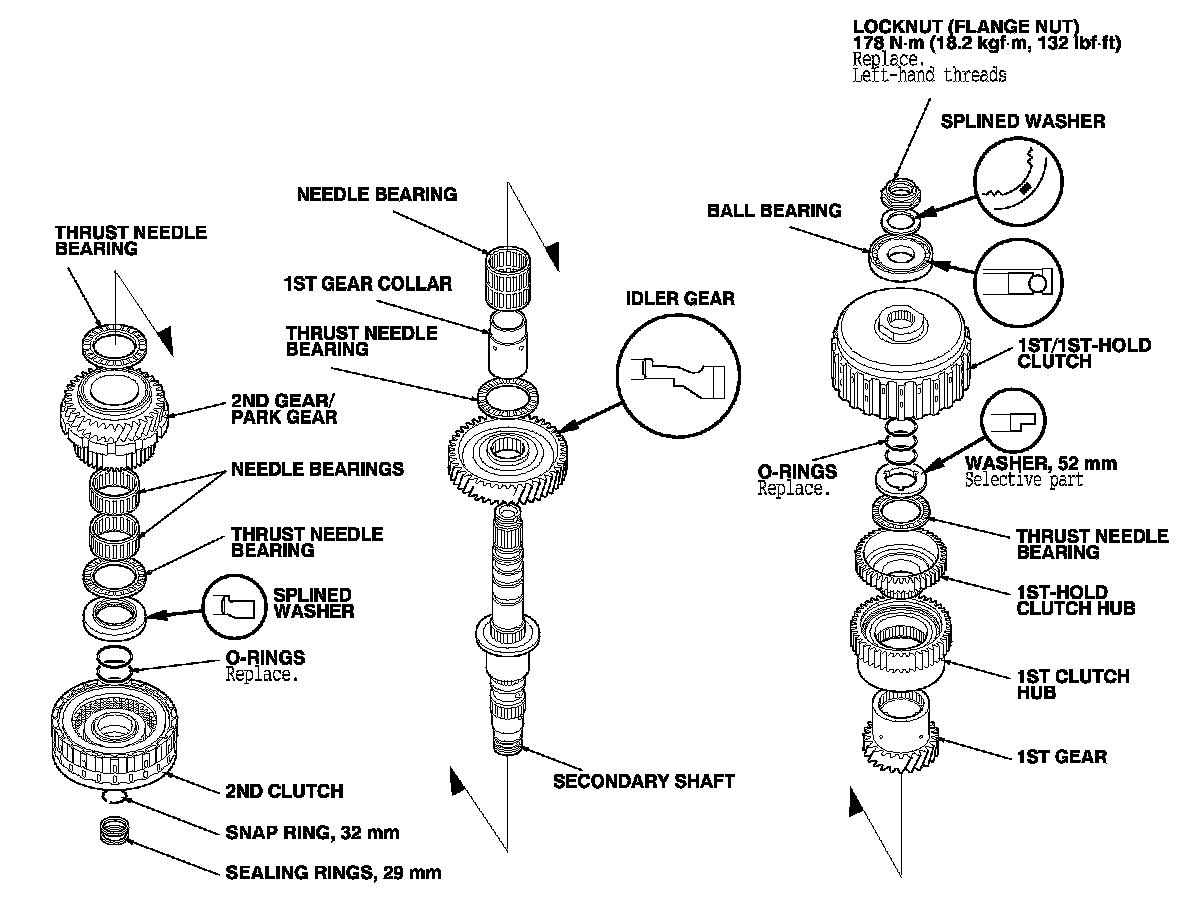

Secondary Shaft Exploded View






Drive Plate
Torque 74 Nm (7.5 kgf-m, 54 ft lb)
Tighten in a crisscross pattern in two or more steps


For information regarding Transmission Overhaul Specifications, please refer to Service and Repair, Overhaul. Overhaul
