System Description
>>

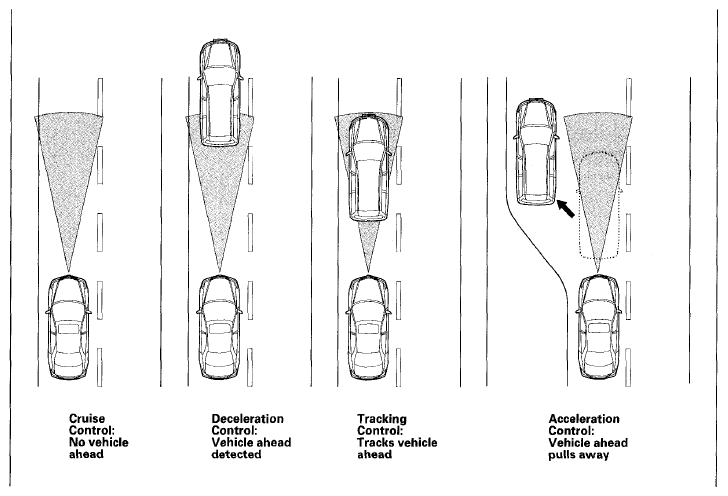

Basic ACC Pattern
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Basic ACC Pattern
Radar detection: Max. 0.06 mile (100 m) ahead in a 16 degree field of view
Vehicle operating speed: 25-90 mph (40-145 km/h)
Fig 1: Vehicle Operating Speed Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
