Audio-HVAC Subdisplay Unit Connector for Inputs and Outputs

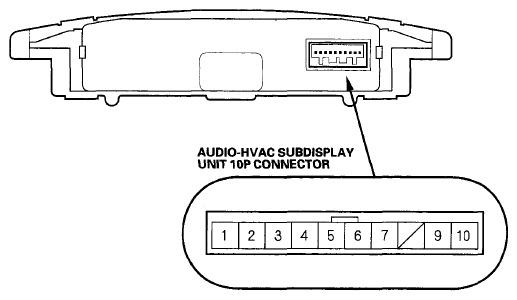

Fig 1: Identifying Audio-HVAC Subdisplay Unit Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Audio-HVAC Subdisplay Unit 10P Connector

WIRE CAVITY CHART

Cavity	Wire	Connects to
1	PUR	Audio unit (5 V GND)
2	PNK	Audio unit (ACC)
3	BLK	Audio unit (SEG TEST)
4	GRN	Audio unit (BLANK)
5	YEL	Audio unit (CLOCK)
6	WHT	Audio unit (DATA)
7	RED	Audio unit (LOAD)
9	ORN	Audio unit (LCD BL-)
10	BLU	Audio unit (LCD BL+)
