Error code: XM NO SIGNAL is displayed

NOTE:
  • Check the vehicle battery condition first.
  • Check the connectors for poor connection or loose terminals.
  1. Park the vehicle outside with a clear view of the southern horizon.
  2. Turn the ignition switch to ON (II).
  3. Turn on the audio unit, and select XM radio.

    Does the XM radio receive a signal?

    YES  -Reception interference operation is normal.

    NO  -

    • With AcuraLink: Go to step 4.
    • Without AcuraLink: Go to step  14.
  4. Turn the ignition switch to LOCK (0).
  5. Check XM antenna 2P connector and AcuraLink control unit (XM receiver) connector B (2P).

    Are the connectors connected?

    YES  -Go to step  6.

    NO  -Reconnect the XM antenna 2P connector and AcuraLink control unit connector B (2P) connector, and recheck XM radio operation. If the signal is restored, the system is OK. If the signal is not restored go to step 3.

  6. Disconnect AcuraLink control unit(XM receiver) connector A (32P).
  7. Turn the ignition switch to ON (II).
  8. Measure the voltage between AcuraLink control unit (XM receiver) connector A (32P) terminal No. 1 and body ground.

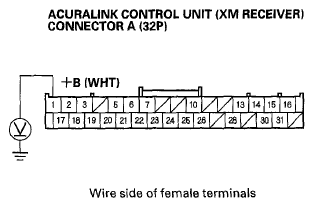

    Fig 1: Measuring Voltage Between Acuralink Control Unit (XM Receiver) Connector A (32P) Terminal No. 1 And Body Ground
    G06161196Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage?

    YES  -Go to step 9.

    NO  -Repair open in the wire between the No. 5 (7.5 A) fuse in the driver's under-dash fuse/relay box and AcuraLink control unit (XM receiver) connector A (32P) terminal No. 1.

  9. Turn the ignition switch to LOCK (0).
  10. Reconnect AcuraLink (XM receiver) connector A (32P).
  11. Turn the ignition switch to ON (II).
  12. Measure the voltage between body ground and AcuraLink control unit (XM receiver) connector A (32P) terminals No. 2 and No. 3 individually.

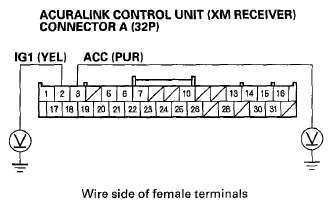

    Fig 2: Measuring Voltage Between Body Ground And Acuralink Control Unit (XM Receiver) Connector A (32P) Terminals No. 2 And No. 3
    G06161197Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage?

    YES  -Go to step 13.

    NO  -Repair open in the wire between the No. 32 (10 A) or the No. 21 (10 A) fuse in the driver's under-dash fuse/relay box and XM receiver connector A (32P) terminals No. 2 and No. 3.

  13. Measure the voltage between AcuraLink control unit (XM receiver) connector A (32P) terminal No. 28 and body ground.
    Fig 3: Measuring Voltage Between Acuralink Control Unit (XM Receiver) Connector A (32P) Terminal No. 28 And Body Ground
    G06161198Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there less than 0.1 V?

    YES  -Go to step 14.

    NO  -Repair open in the wire between AcuraLink control unit (XM receiver) connector A (32P) terminal No. 28 and body ground (G602) (see LEFT SIDE WIRE HARNESS (REAR BRANCH) ).

  14. Substitute known-good XM antenna.

    Does the XM radio receive a signal?

    YES  -Replace the XM antenna (see XM ANTENNA REPLACEMENT ).

    NO  -Substitute a known-good XM antenna lead. If the AcuraLink control unit (XM receiver) receives a signal, replace the original XM antenna lead. If the AcuraLink control unit (XM receiver) does not receive a signal, substitute a known-good AcuraLink control unit (XM receiver) (see ACURALINK CONTROL UNIT (XM RECEIVER) REMOVAL/INSTALLATION ).

  15. Turn the ignition switch to LOCK (0).
  16. Check the connection at XM antenna connector B (2P) and XM receiver connector B (2P).

    Are the connectors connected?

    YES  -Go to step 17.

    NO  -Reconnect the connectors, and recheck the XM radio operation. If the signal is restored, the system is OK. If the signal is not restored go to step  10.

  17. Turn the ignition switch to ON (II).
  18. Measure the voltage between XM receiver connector A (14P) terminal No. 1 and body ground.
    Fig 4: Measuring Voltage Between XM Receiver Connector A (14P) Terminal No. 1 And Body Ground
    G06161199Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage?

    YES  -Go to step 19.

    NO  -Repair open in the wire between audio unit connector C (14P) terminal No. 1 and XM receiver connector A (14P) terminal No. 1.

  19. Measure the voltage between XM receiver connector A (14P) terminal No. 2 and body ground.
    Fig 5: Measuring Voltage Between XM Receiver Connector A (14P) Terminal No. 2 And Body Ground
    G06161200Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there less than 0.1 V?

    YES  -Go to step 20.

    NO  -Repair open in the wire between audio unit connector E (14P) terminal No. 11 and USB adapter unit connector A (14P) terminal No. 11 and XM receiver connector A (14P) terminal No. 11.

  20. Measure the voltage between XM receiver connector A (14P) terminal No. 11 and body ground.
    Fig 6: Measuring Voltage Between XM Receiver Connector A (14P) Terminal No. 11 And Body Ground
    G06161201Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there less than 0.1 V?

    YES  -Go to step 21.

    NO  -Repair open in the wire between audio unit connector C (14P) terminal No. 11 and XM receiver connector A (14P) terminal No. 11.

  21. Substitute a known-good XM antenna.

    Does the XM radio receive signal?

    YES  -Replace the XM antenna (see XM ANTENNA REPLACEMENT ).

    NO  -Substitute a known-good XM antenna lead. If the XM receiver receives signal, replace the original XM antenna lead, if the XM receiver does not receive signal, substitute a known-good XM receiver (see XM RECEIVER REMOVAL/INSTALLATION ).
