XM Status

You can check the XM status in this screen.

XM STATUS CHART

Items Condition Idicated
XM Reception
  • Receiving
  • Check Antenna
  • No Signal
  • Loading
  • Expired
Traffic Signal Reception
  • Receiving
  • Check Antenna
  • No Signal
  • Loading
  • Expired
Traffic Indicator
  • TRF (green icon): Traffic information is available.
  • TRF (white icon): Flow or incident data is not available.
  • TRF (red icon): No traffic available (flow and incident).
Traffic Data
  • OK
  • Invalid
Traffic Last Update Last update time and date indicated.
Weather Signal Reception
  • Receiving
  • Check Antenna
  • No Signal
  • Loading
  • Expired
Weather Data
  • OK
  • Invalid
Weather Last Update Last update time and date indicated.

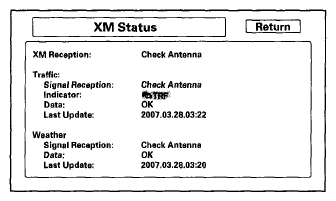

Fig 1: Screen Display - XM Status
G06163072Courtesy of AMERICAN HONDA MOTOR CO., INC.
