Passenger's Under-dash Fuse/Relay Box

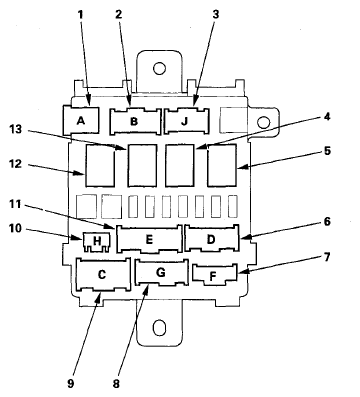

PASSENGER'S UNDER-DASH FUSE/RELAY BOX REFERENCE CHART
| Socket | Ref | Terminal | Connects to | ||
|---|---|---|---|---|---|
| A | 1 | 1 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) | ||
| B | 2 | 10 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) | ||
| C | 9 | 5 | Right side wire harness (see RIGHT SIDE WIRE HARNESS (FRONT BRANCH) ) | ||
| D | 6 | 17 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (RIGHT BRANCH) ) | ||
| E | 11 | 14 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (RIGHT BRANCH) ) | ||
| Fuel fill door open relay | 5 | 4 | |||
| F | 7 | 8 | Right side wire harness (see RIGHT SIDE WIRE HARNESS (FRONT BRANCH) ) | ||
| G | 8 | 14 | Right side wire harness (see RIGHT SIDE WIRE HARNESS (FRONT BRANCH) ) | ||
| H | 10 | 3 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (RIGHT BRANCH) ) | ||
| J | 3 | 13 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) | ||
| Headlight washer relay (1) | 12 | 4 | |||
| Seat heater relay | 4 | 4 | |||
| Throttle actuator control module relay | 13 | 4 | |||
|
|||||
