HandsFreeLink Control Unit Removal/Installation

  1. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Remove the passenger's under-dash fuse/relay box (see PASSENGER'S UNDER-DASH FUSE/RELAY BOX REMOVAL/INSTALLATION ).
  3. Remove the bolts from the bracket that holds the HandsFreeLink control unit (A), the throttle actuator control module, and the ACC unit.

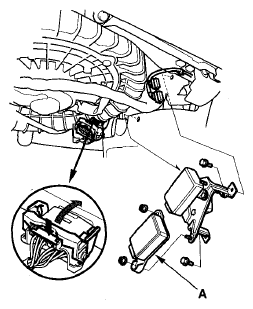

    Fig 1: Disconnecting Connectors From Handsfreelink Control Unit
    G06161517Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the connectors from the HandsFreeLink control unit.
  5. Remove the HandsFreeLink control unit from the bracket.
  6. Install the HandsFreeLink control unit in the reverse order of removal.
