HomeLink Unit Replacement

  1. Remove the roof console (see ROOF CONSOLE REPLACEMENT ).
  2. Disconnect the connector (A) from the HomeLink

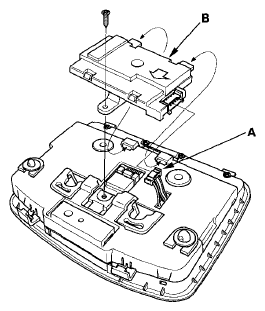

    Fig 1: Identifying Connector And Homelink With Screw
    G06165310Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screw and HomeLink unit.
  4. Install the unit in the reverse order of removal.
