Fuel Fill Pipe Removal/Installation

Drain the fuel tank (see FUEL TANK DRAINING ).
Remove the left rear damper (see DAMPER REPLACEMENT ).
Remove the fuel fill cap.
Disconnect the fuel fill tubes (A), from the fuel fill pipe(B).

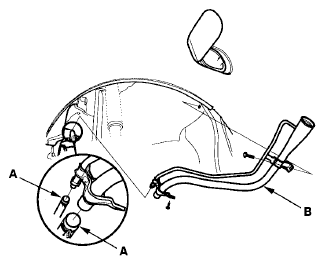

Fig 1: Locating Fuel Fill Tubes And Fuel Fill Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts and the fuel fill pipe.
Install the parts in the reverse order of removal.
NOTE: Before connecting the fuel fill pipe and quick-connect fitting, check for dirt, and clean it if needed, taking care not to damage the fuel fill pipe and other parts.
