Fluid Check/Replacement

Remove the right upper fender trim (A) (see UPPER GRILLE REPLACEMENT ).

Fig 1: Identifying Right Upper Fender Trim
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the reservoir (A) at regular intervals, and add the recommended fluid as necessary to fill the reservoir to the upper level line (B). Always use Acura Power Steering Fluid. Using any other type of power steering fluid or automatic transmission fluid can cause increased wear, and poor steering in cold weather.
NOTE: If the fluid is dirty or contaminated, replace the fluid, go to step 3.

System capacity:

1.1 L (1.16 US. qt) at disassembly

Reservoir capacity:

0.32 L (0.34 US. qt)

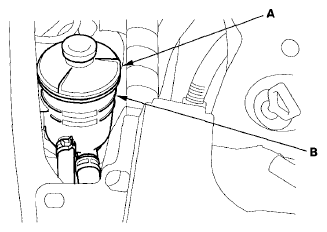

Fig 2: Identifying Reservoir And Upper Level Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the reservoir, then disconnect the return hose (A) to drain the reservoir. Take care not to spill the fluid on the body and parts. Wipe off any spilled fluid at once.
NOTE: Inspect the reservoir screen for any debris. If the reservoir screen is clogged, replace the reservoir.

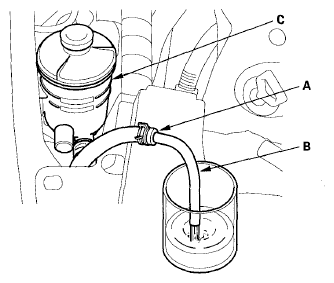

Fig 3: Identifying Return Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect a hose (B) of suitable diameter to the disconnected return hose, and put the hose end in a suitable container.
Start the engine, let it run at idle, and turn the steering wheel from lock-to-lock several times. When fluid stops running out of the hose, shut off the engine. Discard the fluid.
Reinstall the return hose on the reservoir.
Fill the reservoir to the upper level line (C).
Start the engine and run it at fast idle, then turn the steering from lock-to-lock several times to bleed air from the system.
Recheck the fluid level and add some if necessary. Do not fill the reservoir beyond the upper level line.
If the fluid is contaminated, dark, or discolored, repeat the procedure as necessary.
Install the right upper fender trim (see UPPER GRILLE REPLACEMENT ).
