Steering Wheel Disassembly/Reassembly

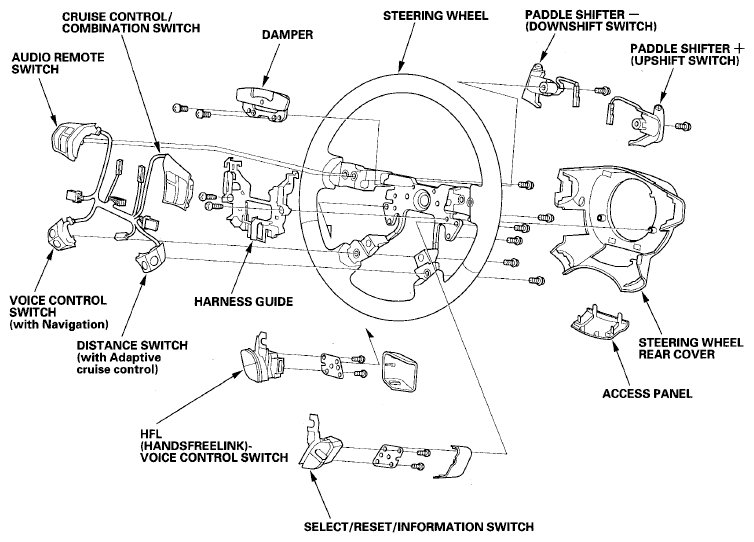

Fig 1: Identifying Steering Wheel Components
G06161296Courtesy of AMERICAN HONDA MOTOR CO., INC.
