Special Tools

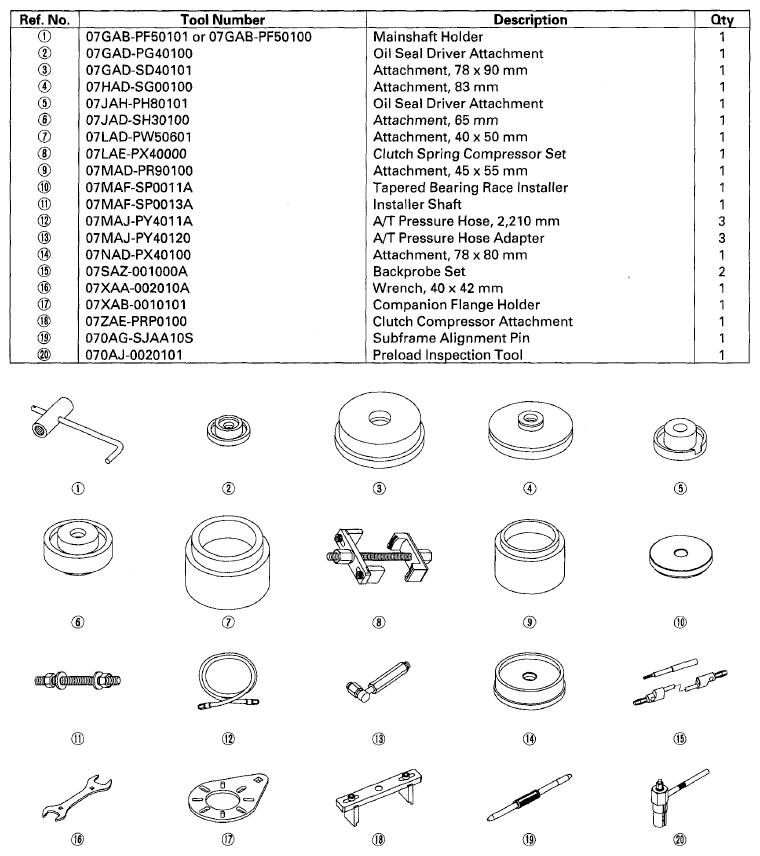

Fig 1: Special Tools Chart (1 Of 2)
G06164267Courtesy of AMERICAN HONDA MOTOR CO., INC.

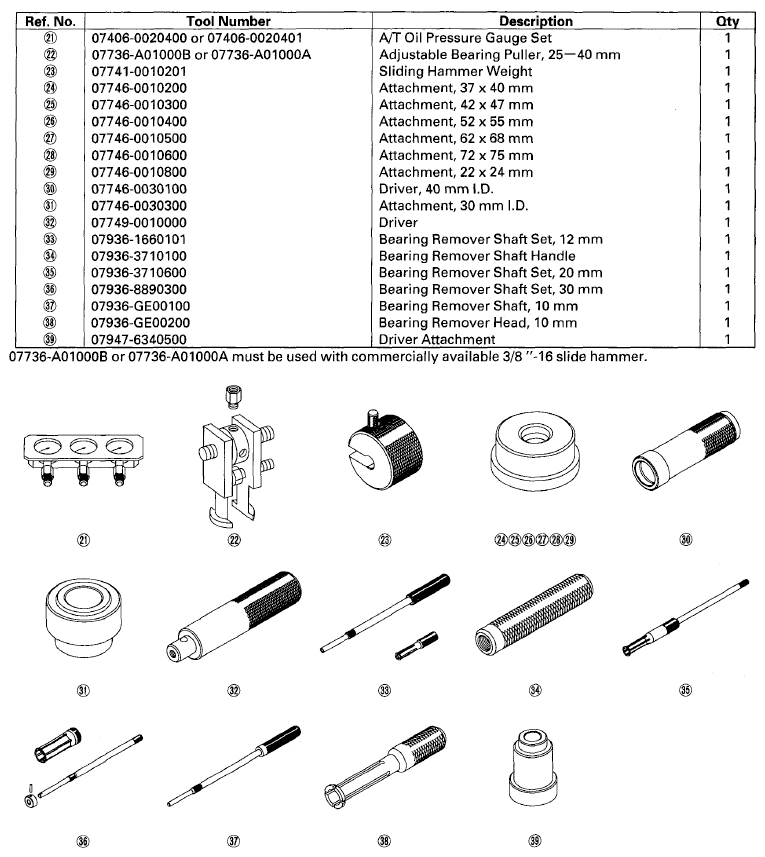

Fig 2: Special Tools Chart (2 Of 2)
G06164268Courtesy of AMERICAN HONDA MOTOR CO., INC.
