Pinout Values and Diagnostic Parameters

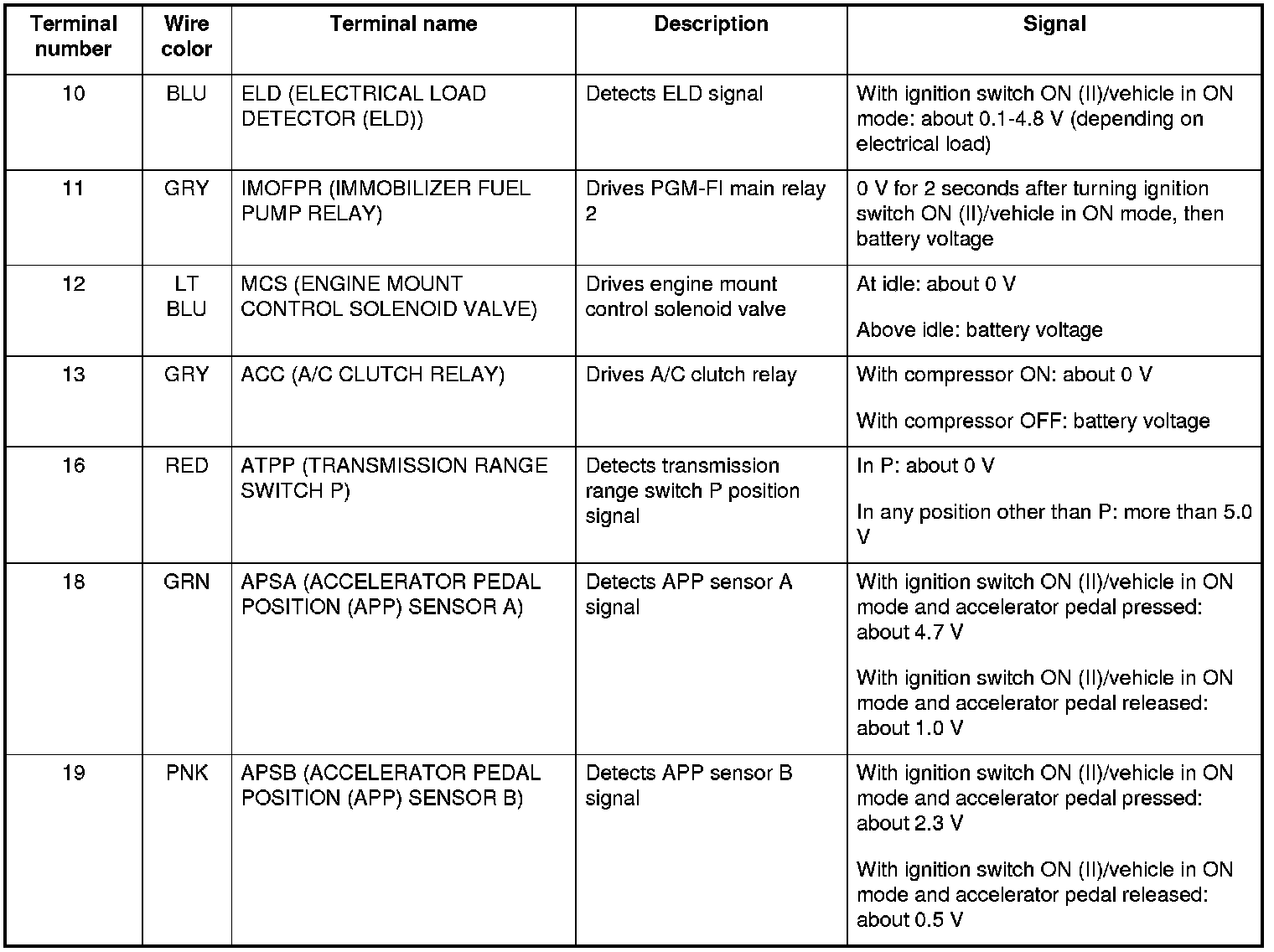

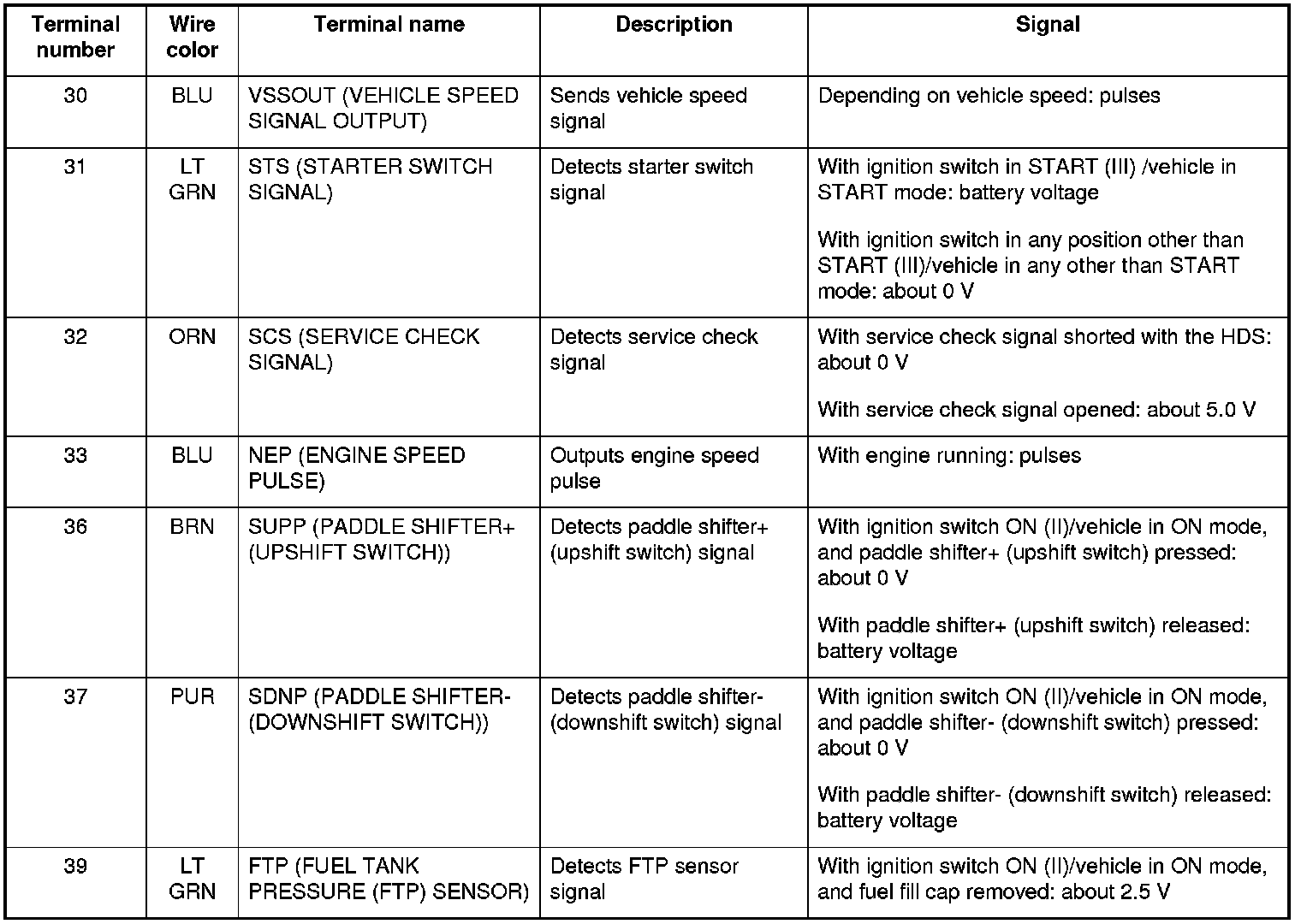

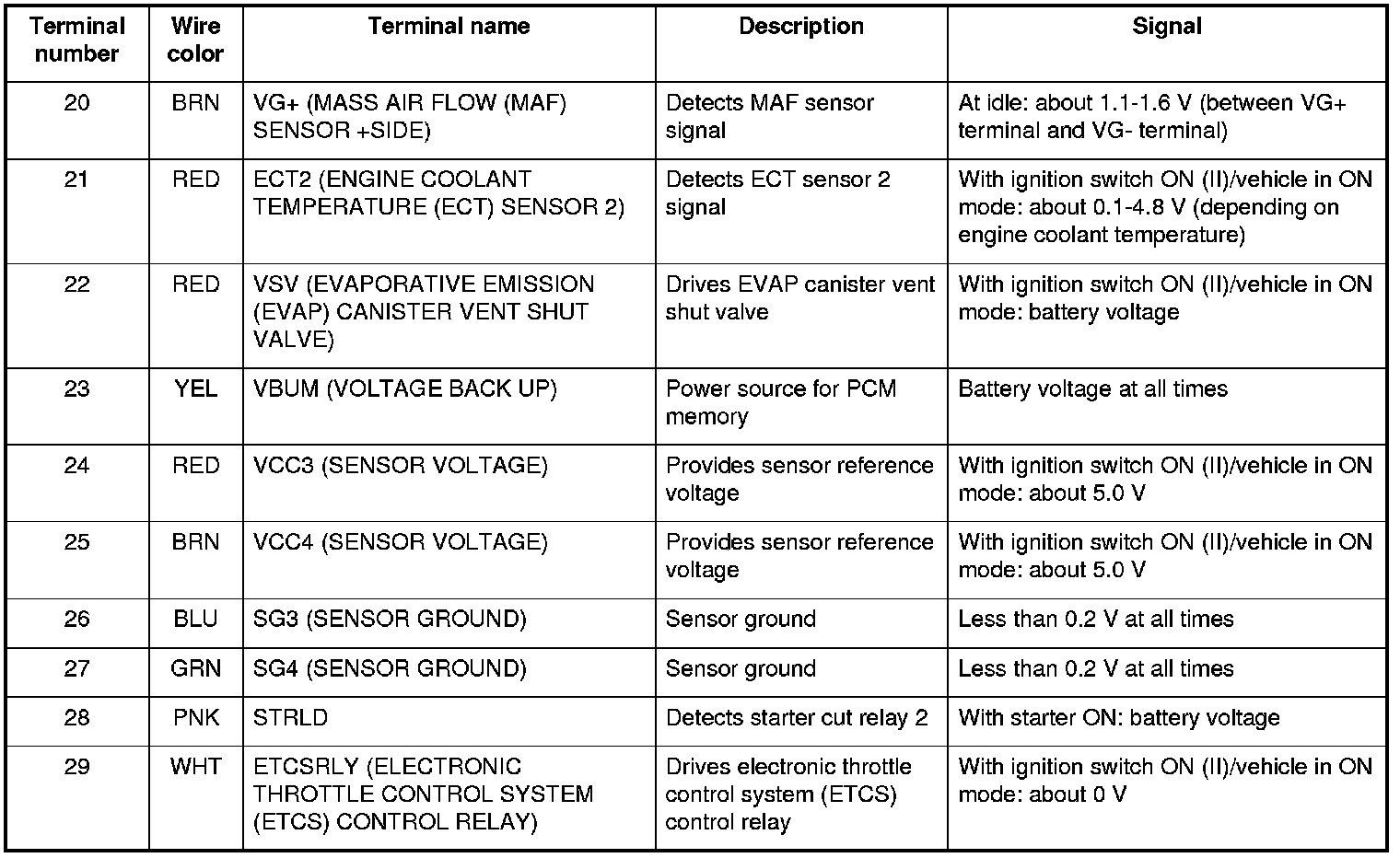

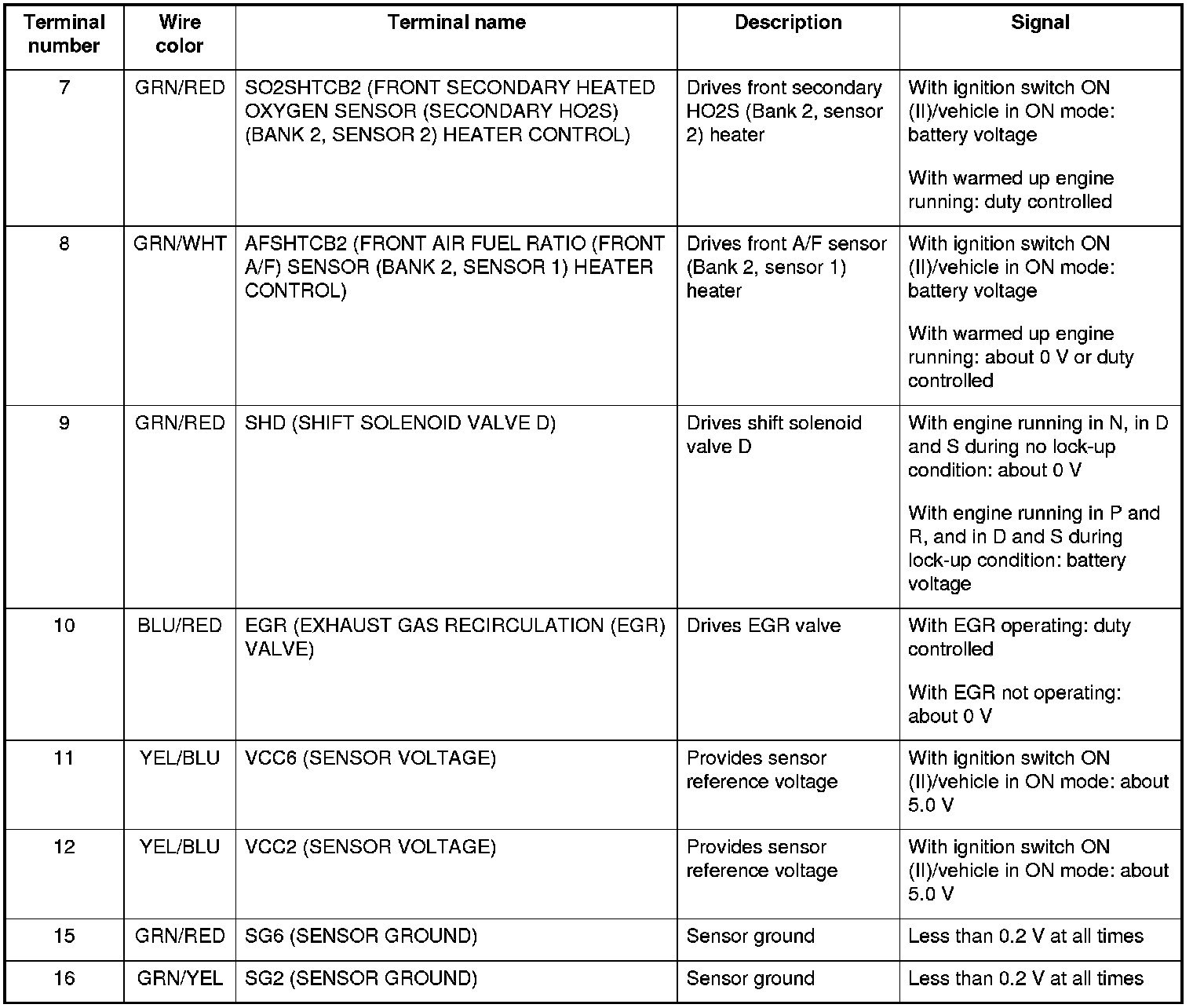

PCM Inputs and Outputs at Connector A (square) (49P)

NOTE: Standard battery voltage is about 12 V.

PCM Inputs and Outputs at Connector A (square) (49P)

NOTE: Standard battery voltage is about 12 V.

PCM Inputs and Outputs at Connector A (square) (49P)

NOTE: Standard battery voltage is about 12 V.

PCM Inputs and Outputs at Connector A (square) (49P)

NOTE: Standard battery voltage is about 12 V.

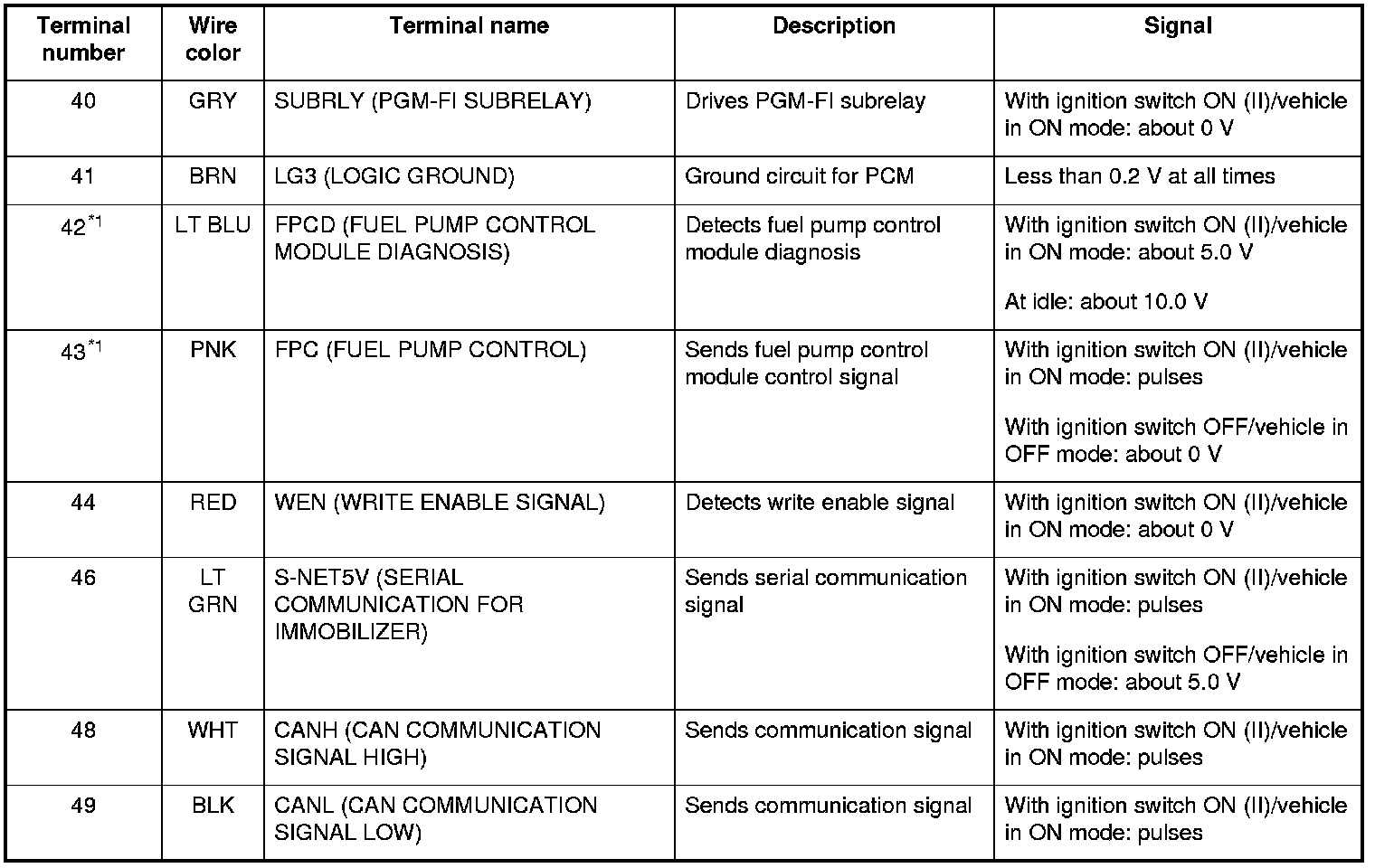

PCM Inputs and Outputs at Connector A (square) (49P)

NOTE: Standard battery voltage is about 12 V.

*1: With SH-AWD system

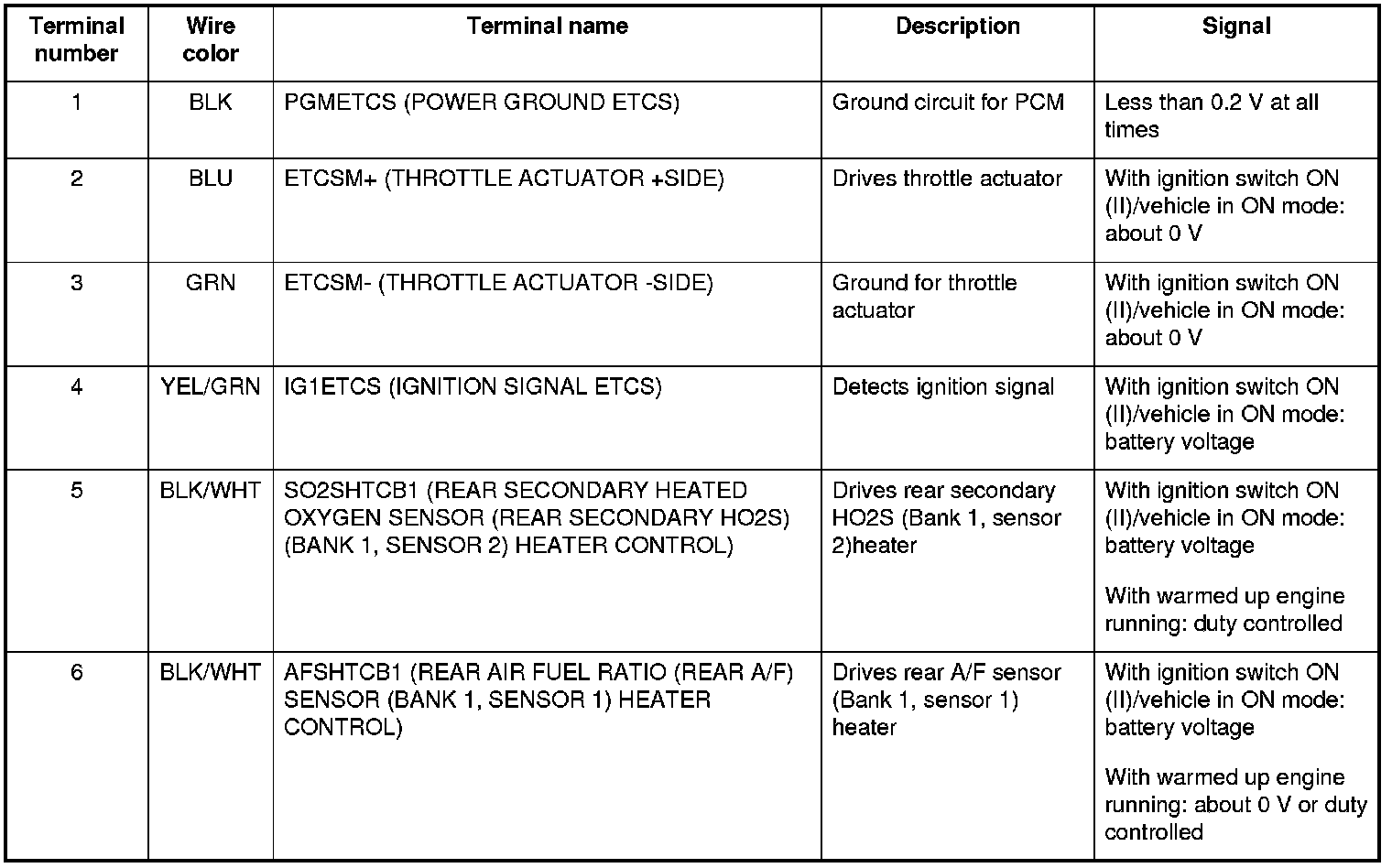

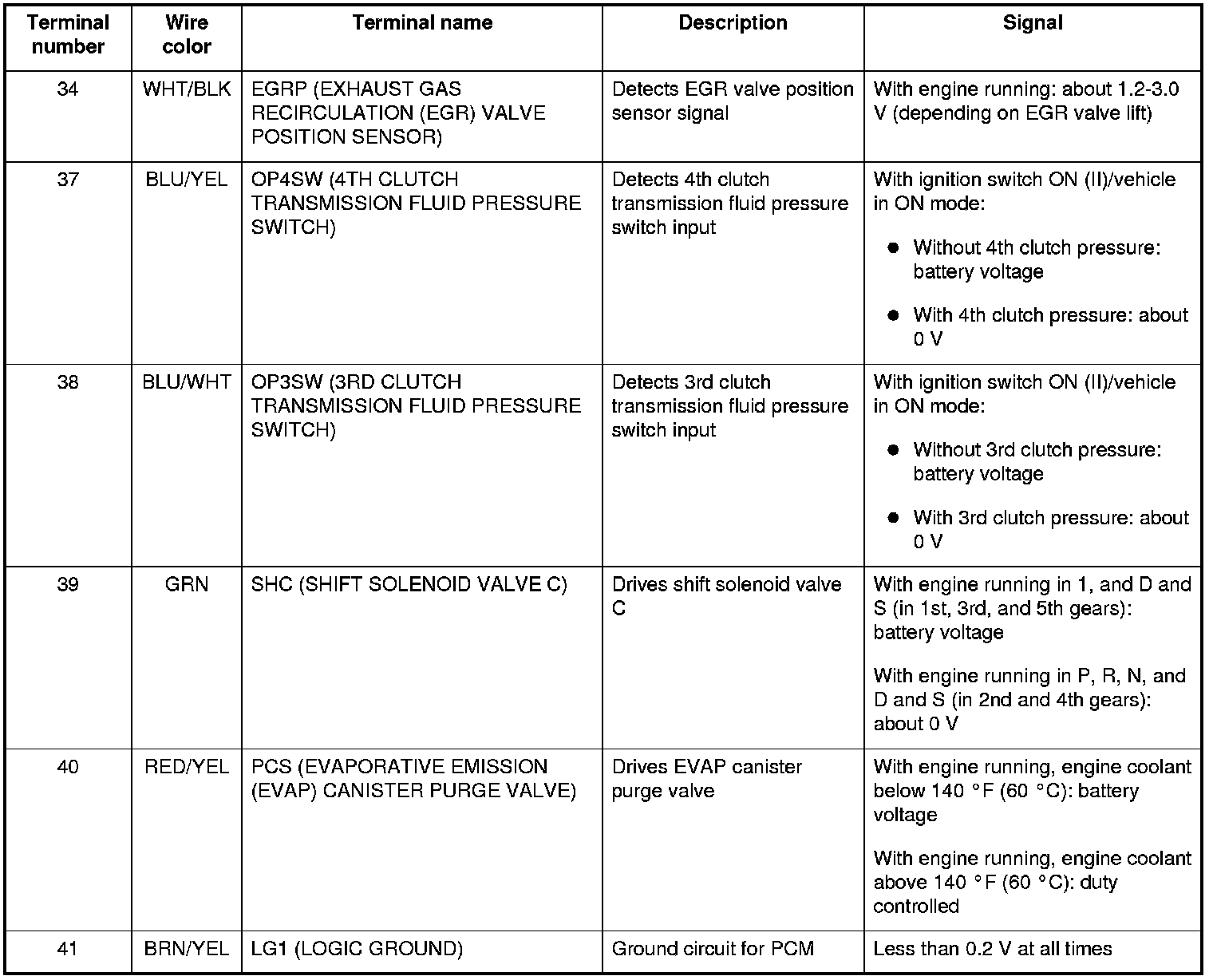

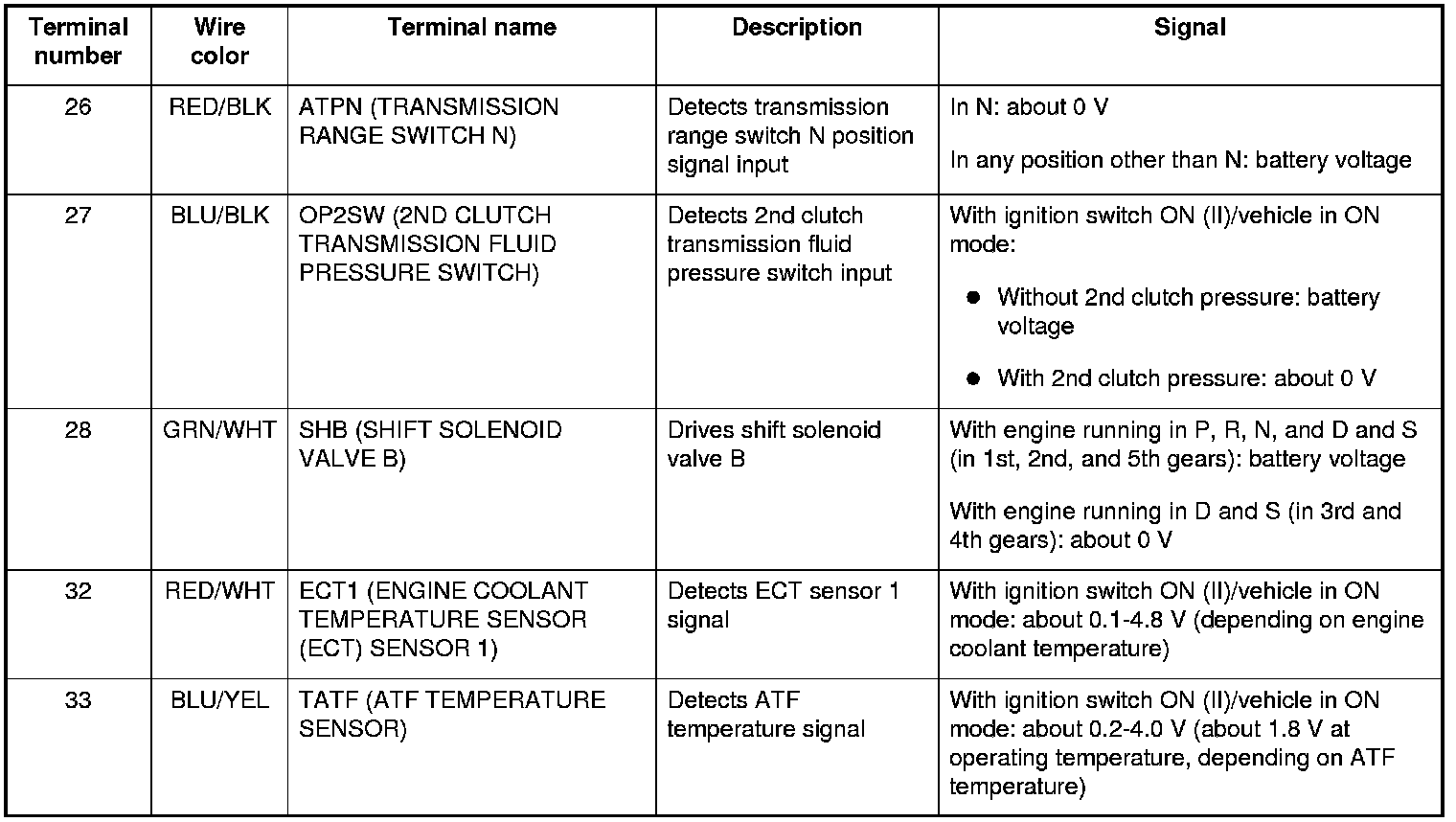

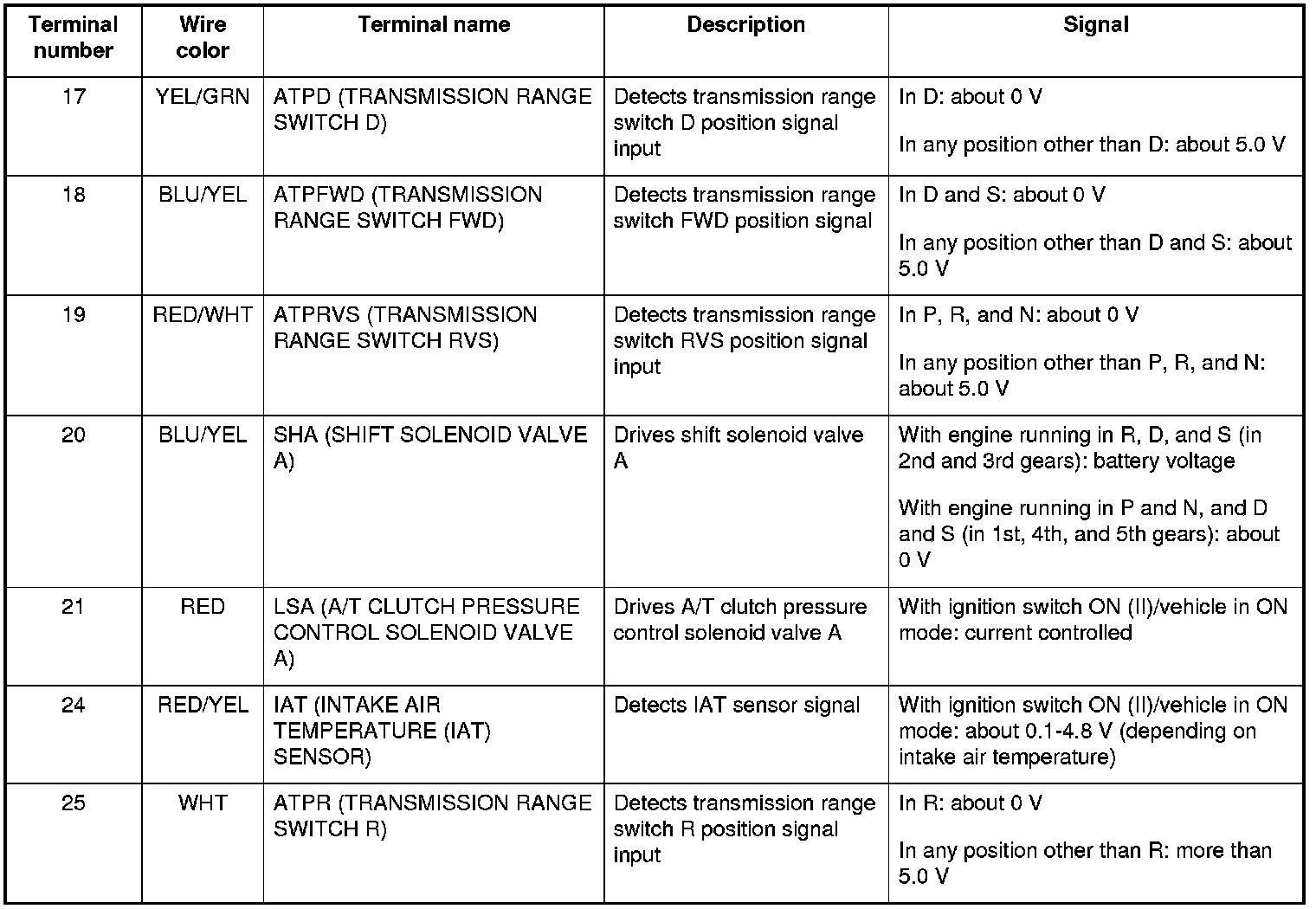

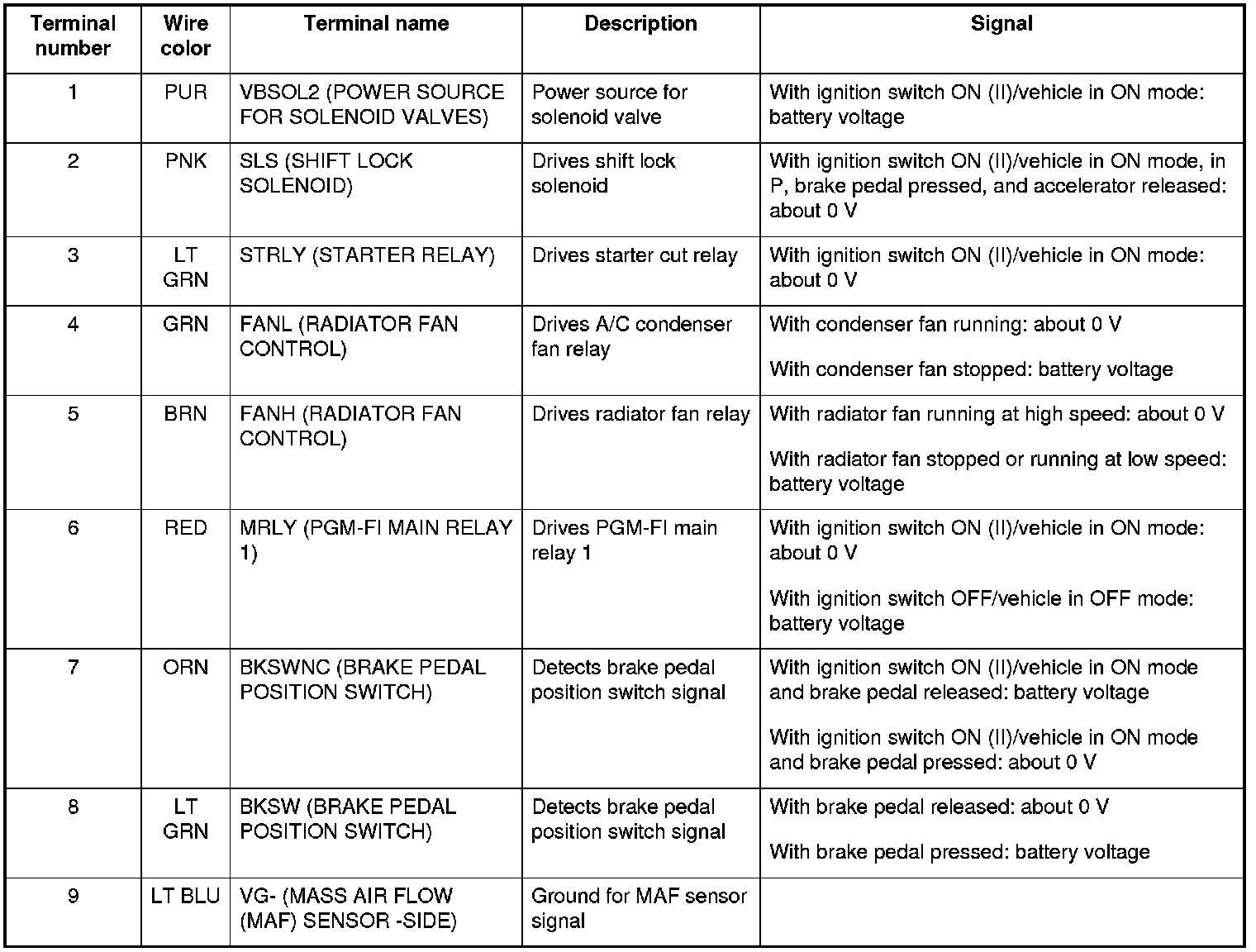

PCM Inputs and Outputs at Connector B (triangle) (49P)

NOTE: Standard battery voltage is about 12 V.

PCM Inputs and Outputs at Connector B (triangle) (49P)

NOTE: Standard battery voltage is about 12 V.

PCM Inputs and Outputs at Connector B (triangle) (49P)

NOTE: Standard battery voltage is about 12 V.

PCM Inputs and Outputs at Connector B (triangle) (49P)

NOTE: Standard battery voltage is about 12 V.

PCM Inputs and Outputs at Connector B (triangle) (49P)

NOTE: Standard battery voltage is about 12 V.

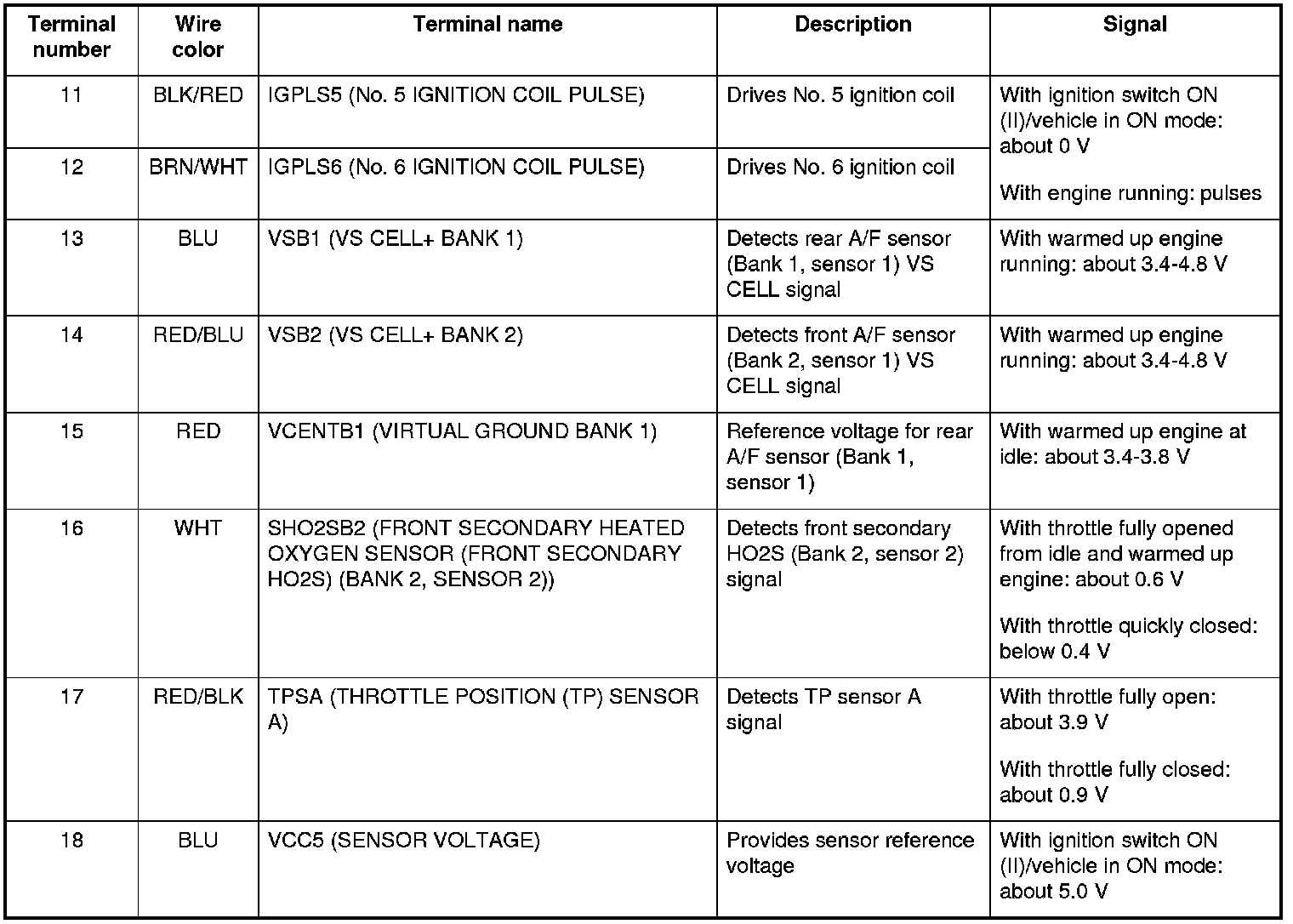

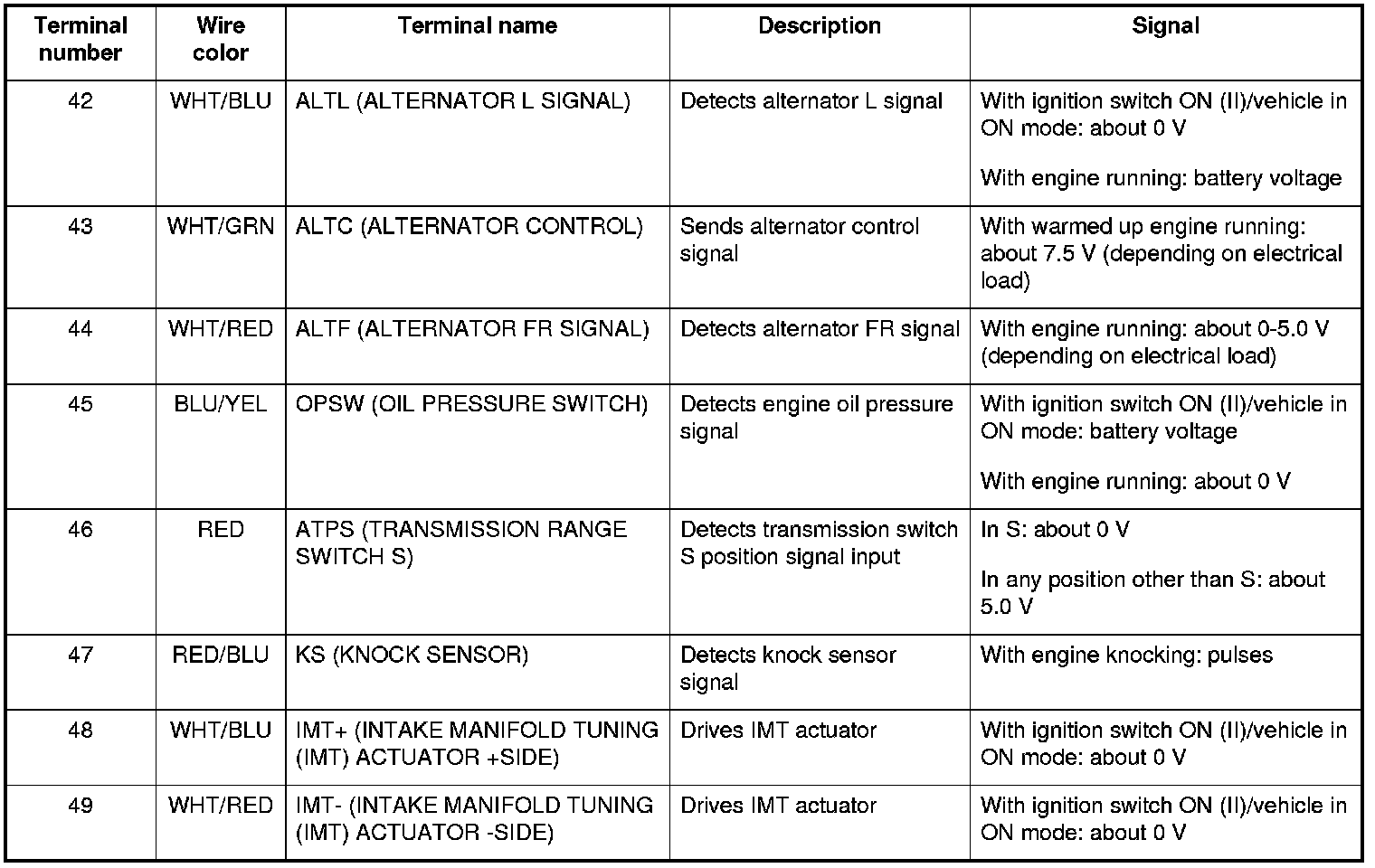

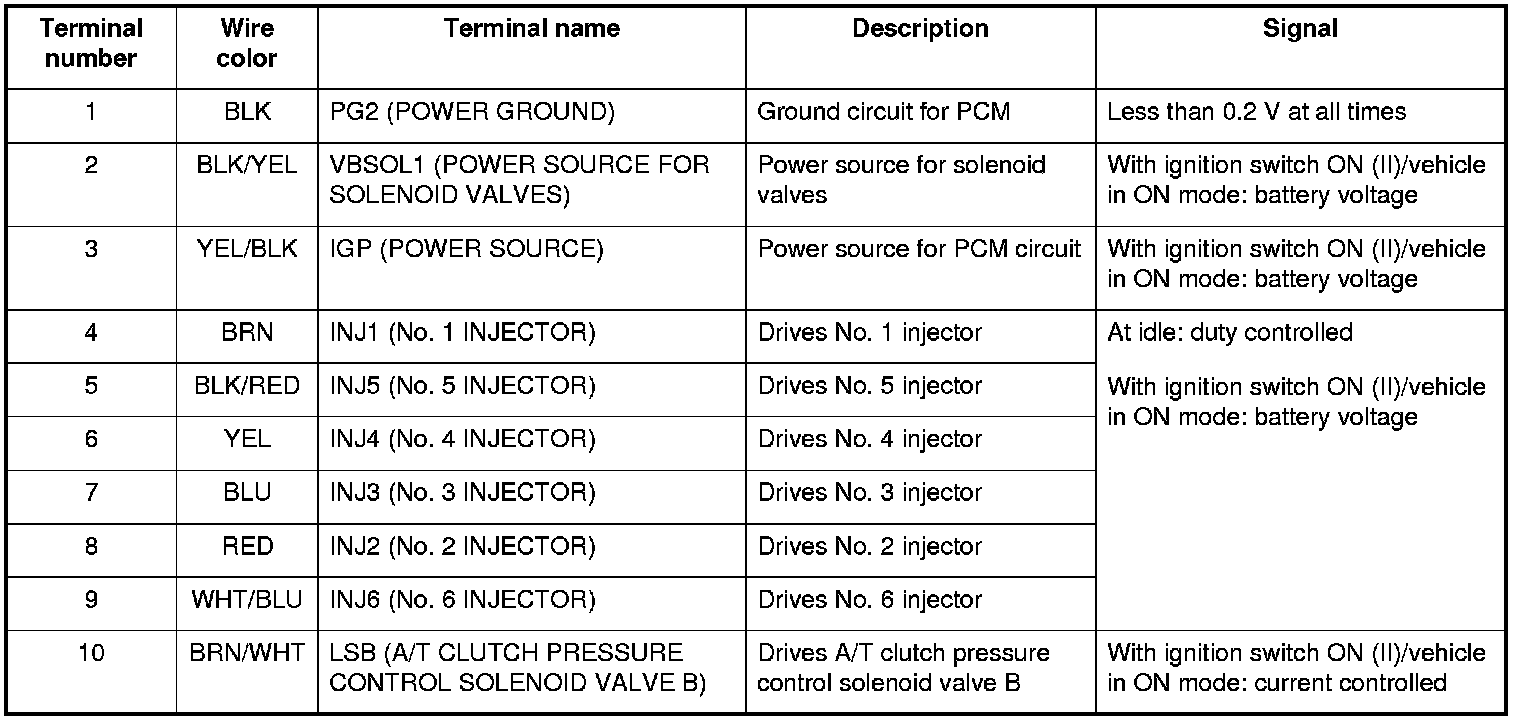

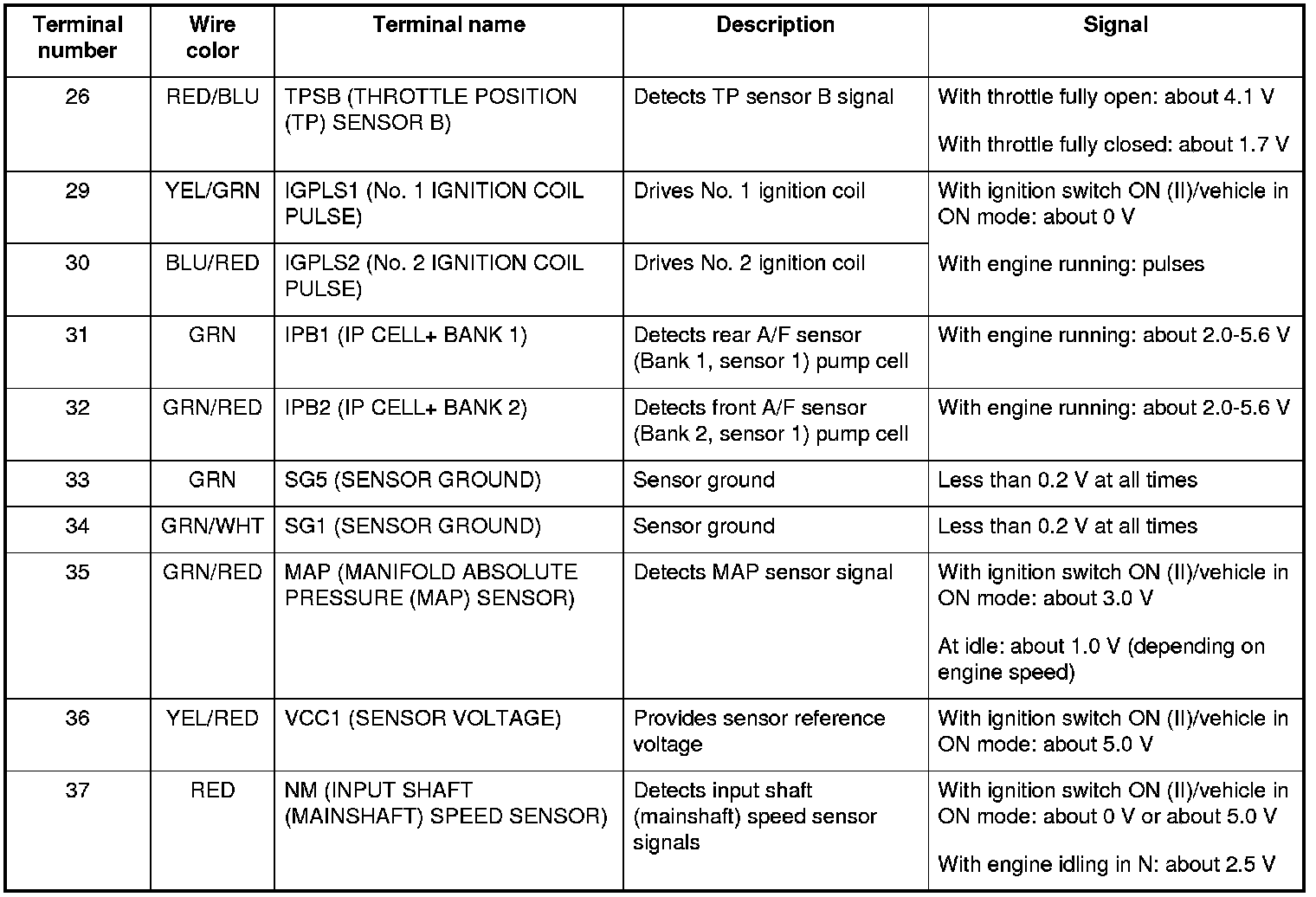

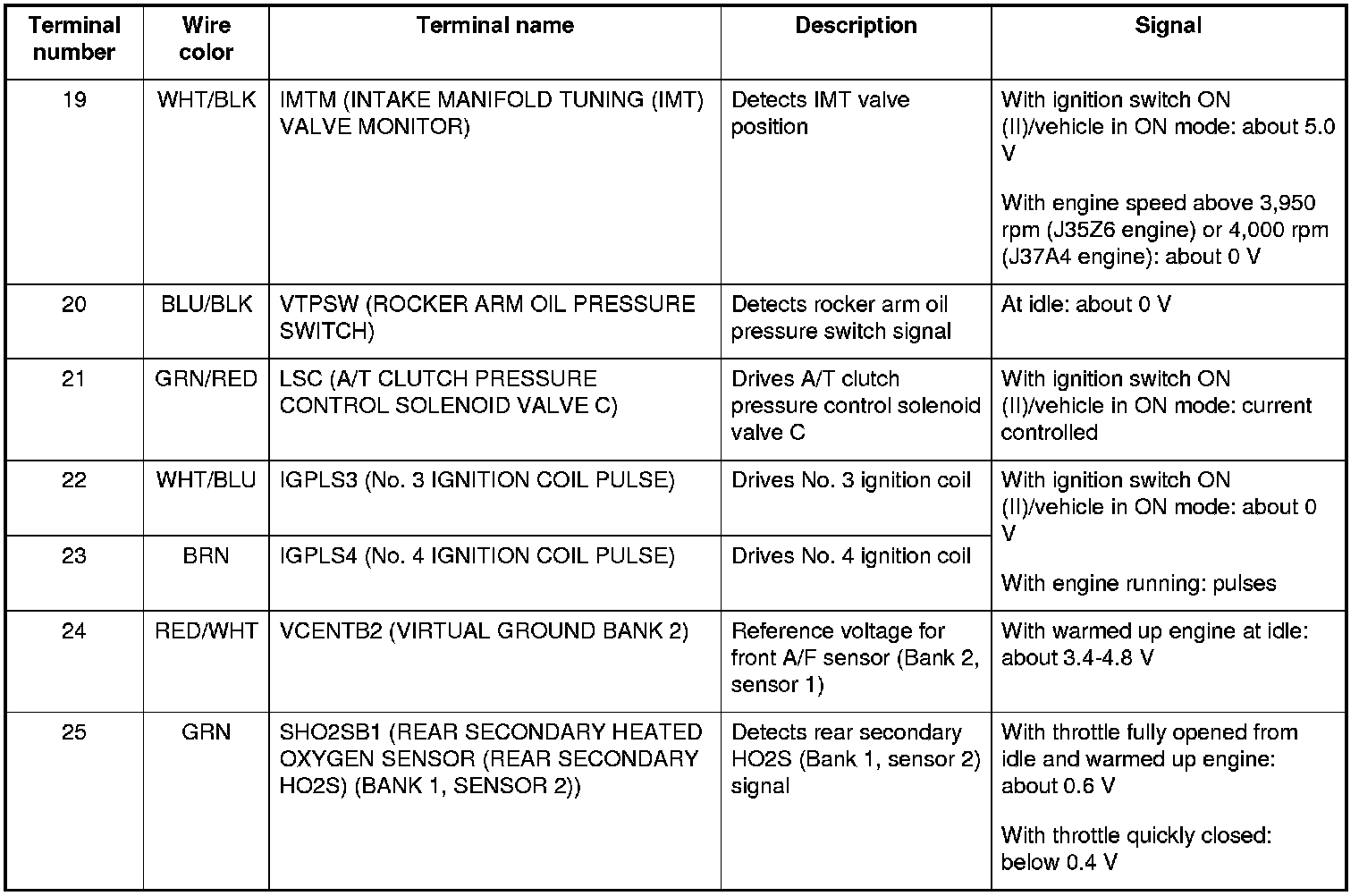

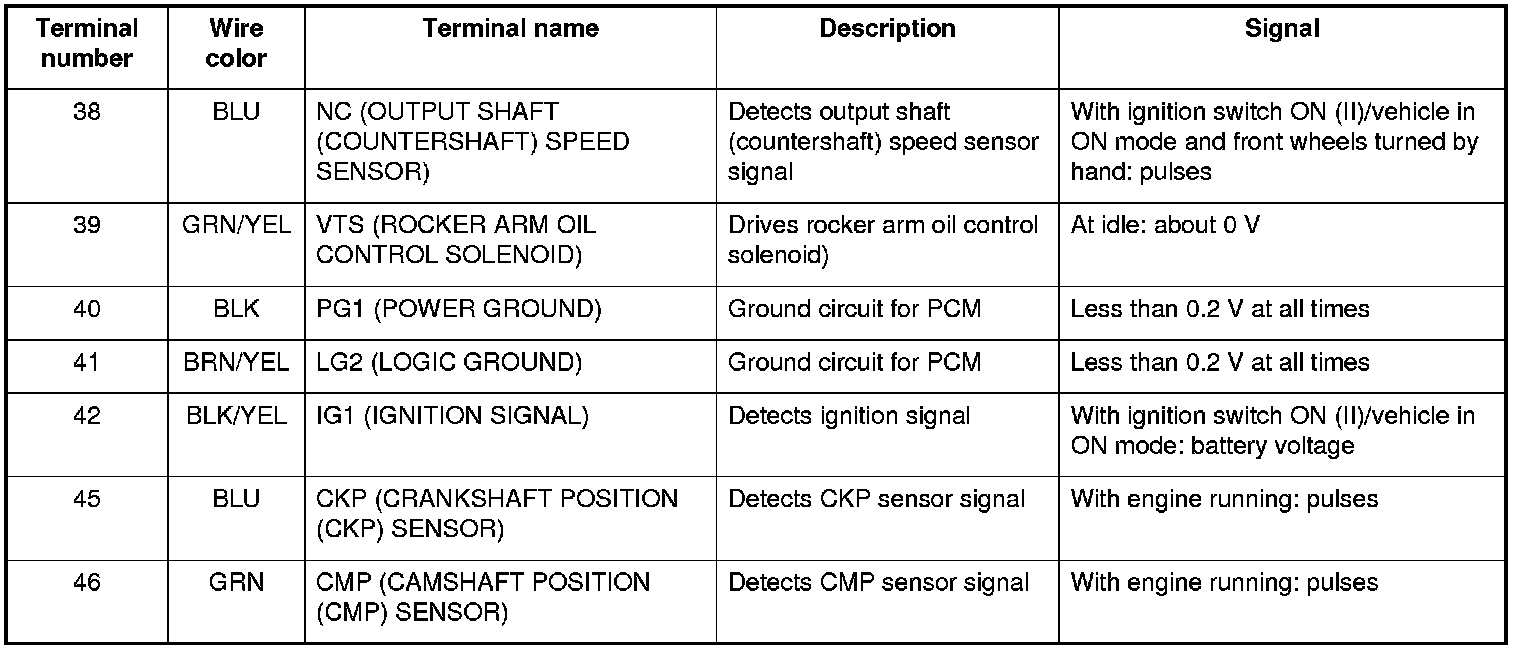

PCM Inputs and Outputs at Connector C (circle) (49P)

NOTE: Standard battery voltage is about 12 V.

PCM Inputs and Outputs at Connector C (circle) (49P)

NOTE: Standard battery voltage is about 12 V.

PCM Inputs and Outputs at Connector C (circle) (49P)

NOTE: Standard battery voltage is about 12 V.

PCM Inputs and Outputs at Connector C (circle) (49P)

NOTE: Standard battery voltage is about 12 V.

PCM Inputs and Outputs at Connector C (circle) (49P)

NOTE: Standard battery voltage is about 12 V.

PCM Inputs and Outputs at Connector C (circle) (49P)

NOTE: Standard battery voltage is about 12 V.
