Microphone (HFL-navigation)

Receives voice commands and transmits them to the audio-navigation unit or HandsFreeLink control unit The microphone unit consist of two microphones The microphones detects the driver's voice and passenger's voice separately

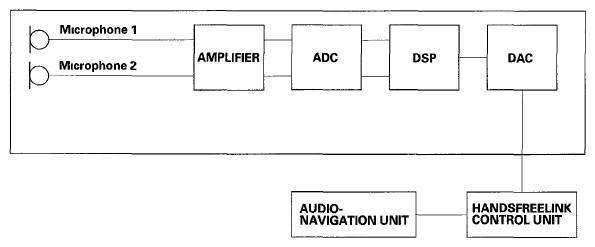

Fig 1: Microphone (HFL-Navigation) Communication Diagram
G05989700Courtesy of AMERICAN HONDA MOTOR CO., INC.
