Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams
>>
Multiplex Integrated Control System
>>
GA-NET Bus (Navigation with XM Radio)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
GA-NET Bus (Navigation with XM Radio)

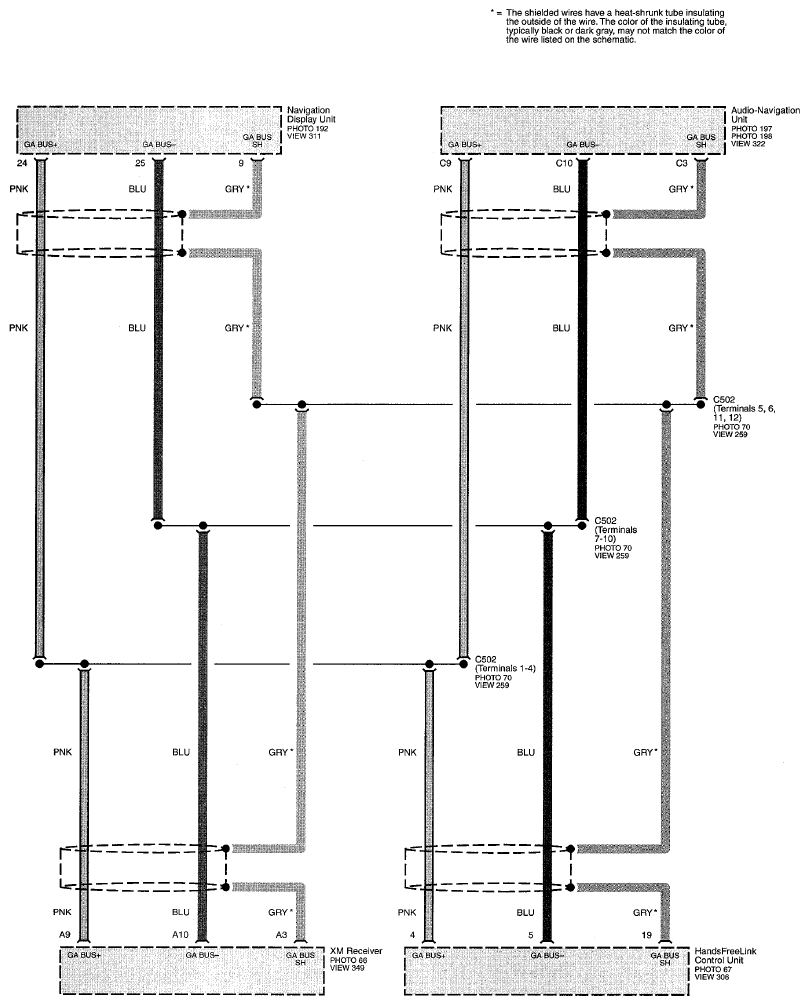

Fig 1: Multiplex Integrated Control System Circuit Diagram - GA-NET Bus (Navigation With XM Radio) (Page 50-14)
