ECM/PCM Inputs and Outputs at ECM/PCM Connector C (◦) (49P)

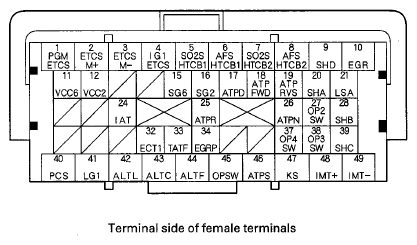

Fig 1: Identifying ECM/PCM Connector C (49P) Terminal
G06679424Courtesy of AMERICAN HONDA MOTOR CO., INC.
TERMINAL DESCRIPTION CHART

Terminal number Wire color Terminal name Description Signal
1 BLK PGMETCS (POWER GROUND ETCS) Ground circuit for ECM/PCM Less than 0.2 V at all times
2 BLU ETCSM+ (THROTTLE ACTUATOR +SIDE) Drives throttle actuator With ignition switch ON (II)/vehicle in ON mode: about 0 V
3 GRN ETCSM - (THROTTLE ACTUATOR-SIDE) Ground for throttle actuator With ignition switch ON (II)/vehicle in ON mode: about 0 V
4 YEL/GRN IG1 ETCS (IGNITION SIGNAL ETCS) Detects ignition signal With ignition switch ON (II)/vehicle in ON mode: battery voltage
5 BLK/WHT SO2SHTCB1 (REAR SECONDARY HEATED OXYGEN SENSOR (REAR SECONDARY HO2S) (BANK 1, SENSOR 2) HEATER CONTROL) Drives rear secondary HO2S (Bank 1, sensor 2) heater With ignition switch ON (II)/vehicle in ON mode: battery voltage
With warmed up engine running: duty controlled
6 BLK/WHT AFSHTCB1 (REAR AIR FUEL RATIO (REAR A/F) SENSOR (BANK 1, SENSOR 1) HEATER CONTROL) Drives rear A/F sensor (Bank 1, sensor 1) heater With ignition switch ON (II)/vehicle in ON mode: battery voltage
With warmed up engine running: about 0 V or duty controlled
7 GRN/RED SO2SHTCB2 (FRONT SECONDARY HEATED OXYGEN SENSOR (SECONDARY HO2S) (BANK 2, SENSOR 2) HEATER CONTROL) Drives front secondary HO2S (Bank 2, sensor 2) heater With ignition switch ON (II)/vehicle in ON mode: battery voltage
With warmed up engine running: duty controlled
8 GRN/WHT AFSHTCB2 (FRONT AIR FUEL RATIO (FRONT A/F) SENSOR (BANK 2, SENSOR 1) HEATER CONTROL) Drives front A/F sensor (Bank 2, sensor 1) heater With ignition switch ON (II)/vehicle in ON mode: battery voltage
With warmed up engine running: about 0 V or duty controlled
9(1) GRN/RED SHD (SHIFT SOLENOID VALVE D) Drives shift solenoid valve D With engine running in N, in D and S during no lock-up condition: about 0 V
With engine running in P and R, and in D and S during lock-up condition: battery voltage
10 BLU/RED EGR (EXHAUST GAS RECIRCULATION (EGR) VALVE) Drives EGR valve With EGR operating: duty controlled
With EGR not operating: about 0 V
11 YEL/BLU VCC6 (SENSOR VOLTAGE) Provides sensor reference voltage With ignition switch ON (II)/vehicle in ON mode: about 5.0 V
12 YEL/BLU VCC2 (SENSOR VOLTAGE) Provides sensor reference voltage With ignition switch ON (II)/vehicle in ON mode: about 5.0 V
15 GRN/RED SG6 (SENSOR GROUND) Sensor ground Less than 0.2 V at all times
16 GRN/YEL SG2 (SENSOR GROUND) Sensor ground Less than 0.2 V at all times
17(1) YEL/GRN ATPD (TRANSMISSION RANGE SWITCH D) Detects transmission range switch D position signal In D: about 0 V
In any position other than D: about 5.0 V
18(1) BLU/YEL ATPFWD (TRANSMISSION RANGE SWITCH FWD) Detects transmission range switch FWD position signal In D and S: about 0 V
In any position other than D and S: about 5.0 V
19(1) RED/WHT ATPRVS (TRANSMISSION RANGE SWITCH RVS) Detects transmission range switch RVS position signal In P, R, and N: about 0 V In any position other than P, R, and N: about 5.0 V
20(1) BLU/YEL SHA (SHIFT SOLENOID VALVE A) Drives shift solenoid valve A With engine running in D, S (in 2nd and 3rd gears) and R: battery voltage
With engine running in P, N, and D (in 1st, 4th, and 5th gears), and S (in 1st and 4th gears): about 0 V
21(1) RED LSA (A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE A) Drives A/T clutch pressure control solenoid valve A With ignition switch ON (II)/vehicle in ON mode: current controlled
24 RED/YEL IAT (INTAKE AIR TEMPERATURE (IAT) SENSOR) Detects IAT sensor signal With ignition switch ON (II)/vehicle in ON mode: about 0.1-4.8 V (depending on intake air temperature)
25(1) WHT ATPR (TRANSMISSION RANGE SWITCH R) Detects transmission range switch R position signal In R: about 0 V
In any position other than R: more than 5.0 V
26(1) RED/BLK ATPN (TRANSMISSION RANGE SWITCH N) Detects transmission range switch N position signal In N: about 0 V
In any position other than N: battery voltage
27(1) BLU/BLK OP2SW (TRANSMISSION FLUID PRESSURE SWITCH A (2ND CLUTCH) Detects transmission fluid pressure switch A (2nd clutch) With ignition switch ON (II)/vehicle in ON mode:
  • Without 2nd clutch pressure: battery voltage
  • With 2nd clutch pressure: about 0 V
28(1) GRN/WHT SHB (SHIFT SOLENOID VALVE B) Drives shift solenoid valve B With engine running in P, R, N, D (in 1st, 2nd, and 5th gears), and S (1st and 2nd gears): battery voltage
With engine running in D and S (in 3rd and 4th gears): about 0 V
32 RED/WHT ECT1 (ENGINE COOLANT TEMPERATURE SENSOR (ECT) SENSOR 1) Detects ECT sensor 1 signal With ignition switch ON (II)/vehicle in ON mode: about 0.1-4.8 V (depending on engine coolant temperature)
33(1) BLU/YEL TATF (ATF TEMPERATURE SENSOR) Detects ATF temperature signal With ignition switch ON (II)/vehicle in ON mode: about 0.2-4.0 V (about 1.8 V at operating temperature, depending on ATF temperature)
34 WHT/BLK EGRP (EXHAUST GAS RECIRCULATION (EGR) VALVE POSITION SENSOR) Detects EGR valve position sensor signal With engine running: about 1.2-3.0 V (depending on EGR valve lift)
37(1) BLU/YEL OP4SW (4TH CLUTCH TRANSMISSION FLUID PRESSURE SWITCH) Detects 4th clutch transmission fluid pressure switch With ignition switch ON (II)/vehicle in ON mode:
  • Without 4th clutch pressure: battery voltage
  • With 4th clutch pressure: about 0 V
38(1) BLU/WHT OP3SW (TRANSMISSION FLUID PRESSURE SWITCH B (3RD CLUTCH)) Detects transmission fluid pressure switch B (3rd clutch) With ignition switch ON (II)/vehicle in ON mode:
  • Without 3rd clutch pressure: battery voltage
  • With 3rd clutch pressure: about 0 V
39(1) GRN SHC (SHIFT SOLENOID VALVE C) Drives shift solenoid valve C With engine running in D and S (in 1st, 3rd, and 5th gears): battery voltage
With engine running in P, R, N, D, and S (in 2nd and 4th gears): about 0 V
40 RED/YEL PCS (EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE) Drives EVAP canister purge valve With engine running, engine coolant below 140°F (60°C): battery voltage
With engine running, engine coolant above 140°F (60°C): duty controlled
41 BRN/YEL LG1 (LOGIC GROUND) Ground circuit for ECM/PCM Less than 0.2 V at all times
42 WHT/BLU ALTL (ALTERNATOR L SIGNAL) Detects alternator L signal With ignition switch ON (II)/vehicle in ON mode: about 0 V
With engine running: battery voltage
43 WHT/GRN ALTC (ALTERNATOR CONTROL) Sends alternator control signal With warmed up engine running: about 7.5 V (depending on electrical load)
44 WHT/RED ALTF (ALTERNATOR FR SIGNAL) Detects alternator FR signal With engine running: about 0-5.0 V (depending on electrical load)
45 BLU/YEL OPSW (OIL PRESSURE SWITCH) Detects engine oil pressure signal With ignition switch ON (II)/vehicle in ON mode: battery voltage
With engine running: about 0 V
46(1) RED ATPS (TRANSMISSION RANGE SWITCH S) Detects transmission switch S position signal In S: about 0 V
In any position other than S: about 5.0 V
47 RED/BLU KS (KNOCK SENSOR) Detects knock sensor signal With engine knocking: pulses
48 WHT/BLU IMT+ (INTAKE MANIFOLD TUNING (IMT) ACTUATOR +SIDE) Drives IMT actuator With ignition switch ON (II)/vehicle in ON mode: about 0 V
49 WHT/RED IMT - (INTAKE MANIFOLD TUNING (IMT) ACTUATOR-SIDE) Drives IMT actuator With ignition switch ON (II)/vehicle in ON mode: about 0 V
(1) A/T
