ACC Cut Relay and IG2 Cut Relay Connector End View (Without Keyless Access) (View 319)
GRY
Under Left Side of Dash
On Dashboard Wire Harness

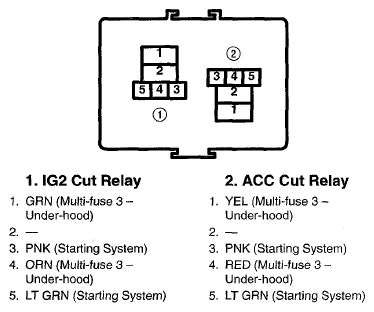

Fig 1: ACC Cut Relay And IG2 Cut Relay Connector Terminal (Without Keyless Access) (View 319)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
