ATF Temperature Sensor Connector End View (A/T) (View 31)
GRY
Under Transmission Housing
On Engine Wire Harness

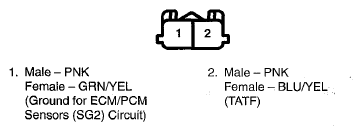

Fig 1: ATF Temperature Sensor Connector Terminal (A/T) (View 31)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
