Climate Control Unit Connector End View (View 325)

GRY
Under Right Side of Dash
On A/C Wire Harness
Connector A

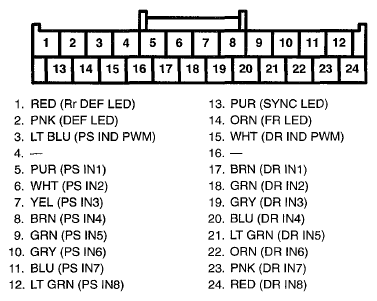

Fig 1: Climate Control Unit Connector Terminal (Connector A) (View 325)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B

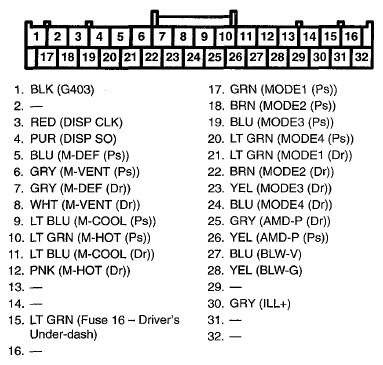

Fig 2: Climate Control Unit Connector Terminal (Connector B) (View 325)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C

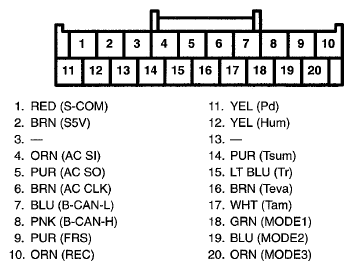

Fig 3: Climate Control Unit Connector Terminal (Connector C) (View 325)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
