Driver's Power Lumbar Support Switch Connector End View (View 190)
NAT
Left Side of Driver's Seat
On Driver's Seat Wire Harness

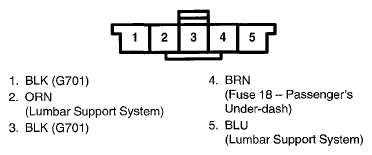

Fig 1: Driver's Power Lumbar Support Switch Connector Terminal (View 190)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
