EPS Torque Sensor Connector End View (View 140)
GRY
Under Left Rear of Engine Compartment
On EPS Sub-harness

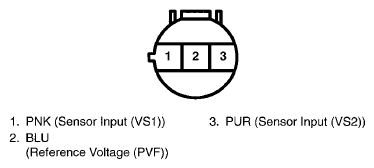

Fig 1: EPS Torque Sensor Connector Terminal (View 140)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
