Electric Steering Lock Control Unit Connector End View (Keyless Access) (View 233)
GRY
In Steering Column Cover
On Dashboard Wire Harness

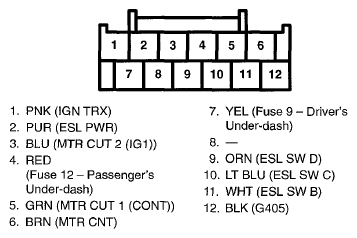

Fig 1: Electric Steering Lock Control Unit Connector Terminal (Keyless Access) (View 233)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
