Engine Start/Stop Switch Connector End View (Keyless Access) (View 239)
WHT
Left Side of Dash
On Dashboard Wire Harness

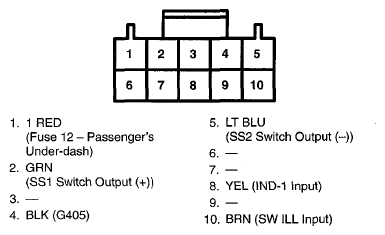

Fig 1: Engine Start/Stop Switch Connector Terminal (Keyless Access) (View 239)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
