Humidity/In-Car Temperature Sensor Connector End View (View 171)
WHT
Left Side of Dash
On Dashboard Wire Harness

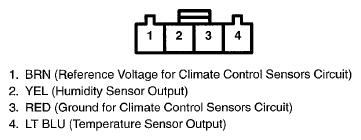

Fig 1: Humidity/In-Car Temperature Sensor Connector Terminal (View 171)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
