Passenger's Under-Dash Fuse/Relay Box Connector End View (View 338)

Behind Right Kick Panel
Connector A
- WHT/LT GRN
- On Dashboard Wire Harness

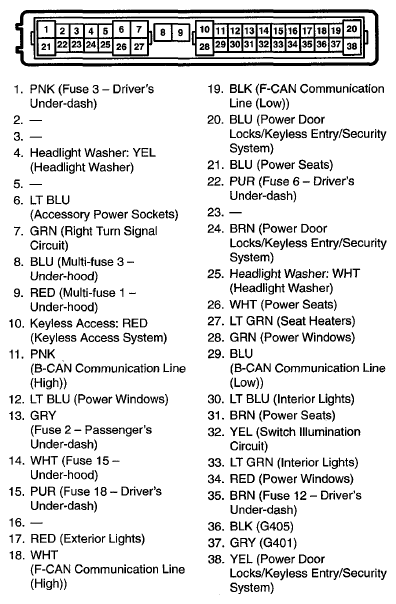

  Fig 1: Passenger's Under-Dash Fuse/Relay Box Connector Terminal (Connector A) (View 338)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- LT GRN
- On Right Engine Compartment Wire Harness

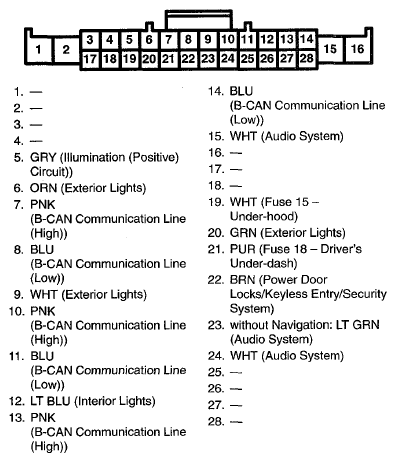

  Fig 2: Passenger's Under-Dash Fuse/Relay Box Connector Terminal (Connector B) (View 338)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector C (Not Used)

Connector D
- LT GRN
- On Audio Wire Harness

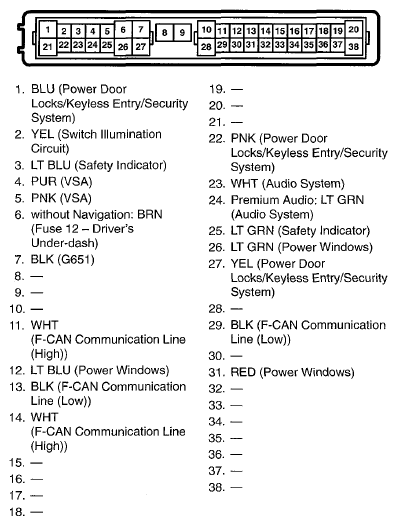

  Fig 3: Passenger's Under-Dash Fuse/Relay Box Connector Terminal (Connector D) (View 338)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector E
- LT GRN
- On Right Engine Compartment Wire Harness

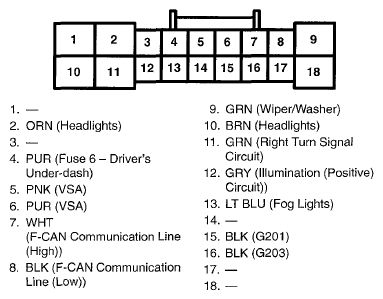

  Fig 4: Passenger's Under-Dash Fuse/Relay Box Connector Terminal (Connector E) (View 338)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector F (Not Used)

Connector G (without SH-AWD)
- LT GRN
- On Right Side Wire Harness

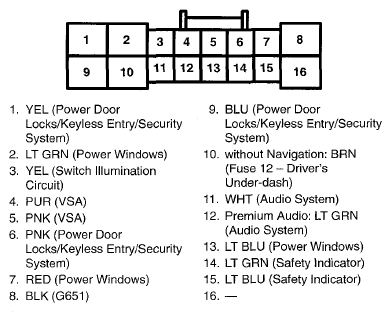

  Fig 5: Passenger's Under-Dash Fuse/Relay Box Connector Terminal (Without SH-AWD) (Connector G) (View 338)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector H (SH-AWD)
- LT GRN
- On Right Side Wire Harness

  Fig 6: Passenger's Under-Dash Fuse/Relay Box Connector Terminal (SH-AWD) (Connector H) (View 338)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
