RF Unit 2 Connector End View (Keyless Access) (View 153)
BLK
Right C-pillar
On Right Side Wire Harness

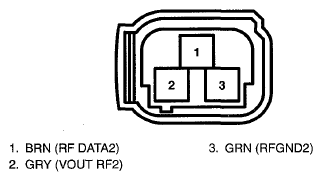

Fig 1: RF Unit 2 Connector Terminal (Keyless Access) (View 153)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
