SH-AWD Control Unit Connector End View (SH-AWD) (View 343)

Right Side of Trunk
On Right Side Wire Harness
Connector A
- GRY

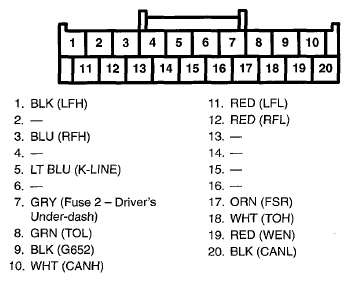

  Fig 1: SH-AWD Control Unit Connector Terminal (SH-AWD) (Connector A) (View 343)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- WHT

  Fig 2: SH-AWD Control Unit Connector Terminal (SH-AWD) (Connector B) (View 343)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
